Vacuum Lifter for Glass Panel

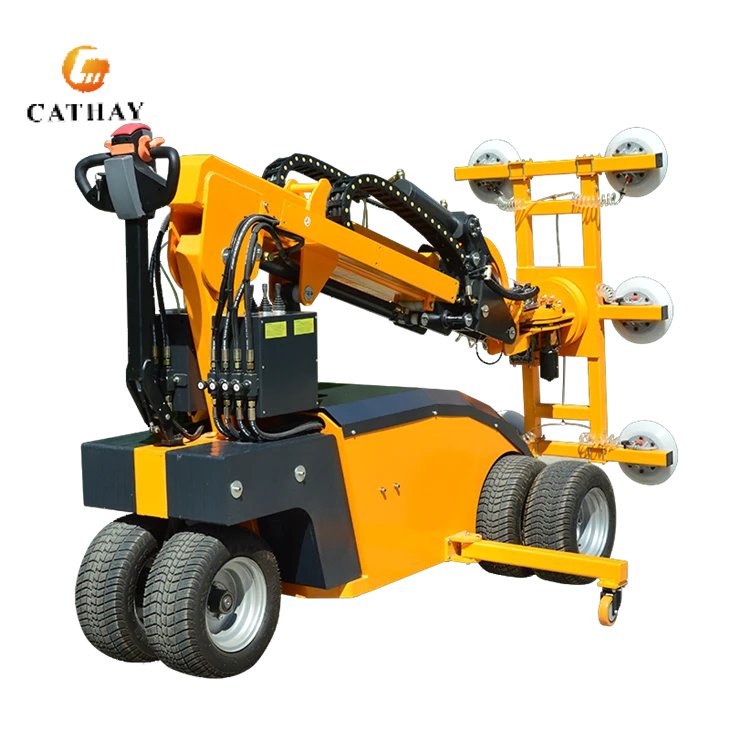

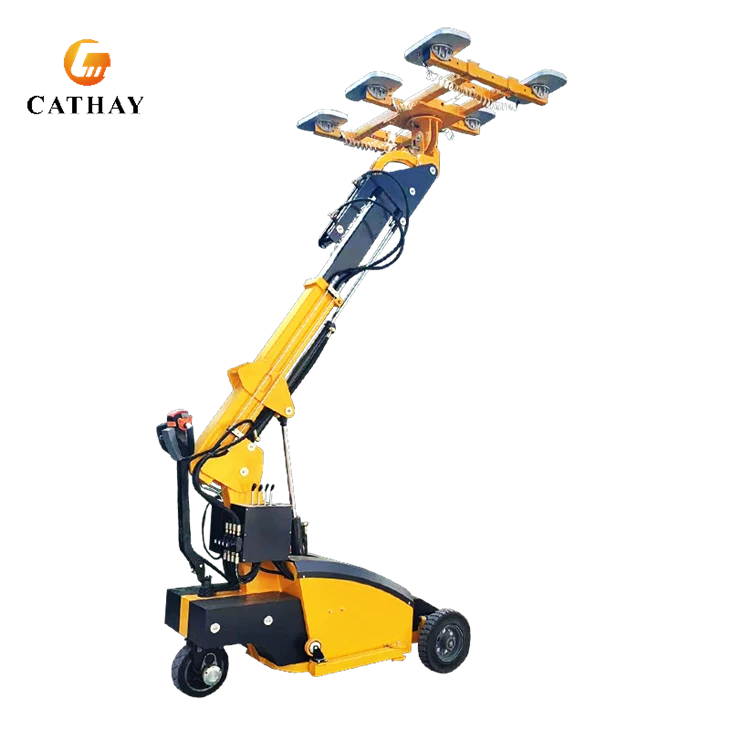

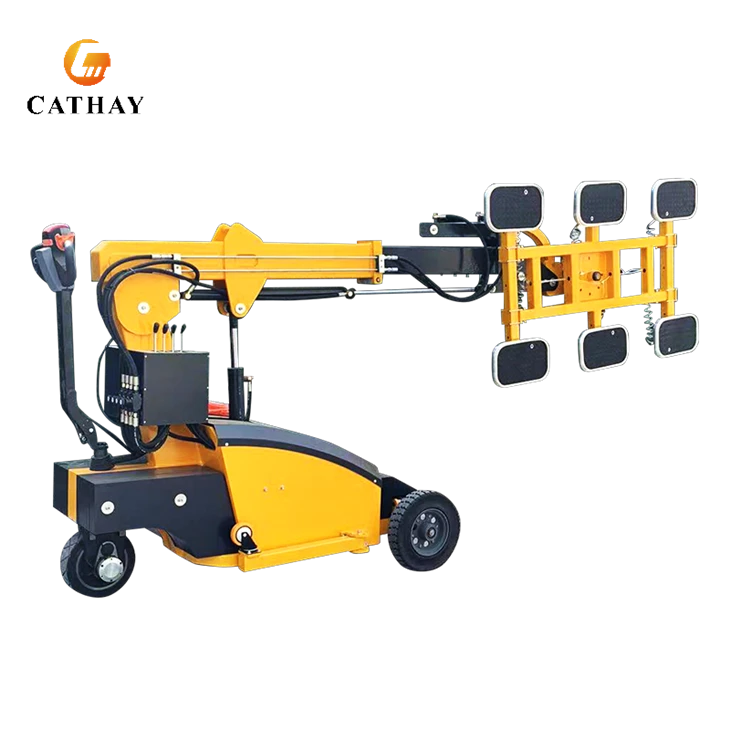

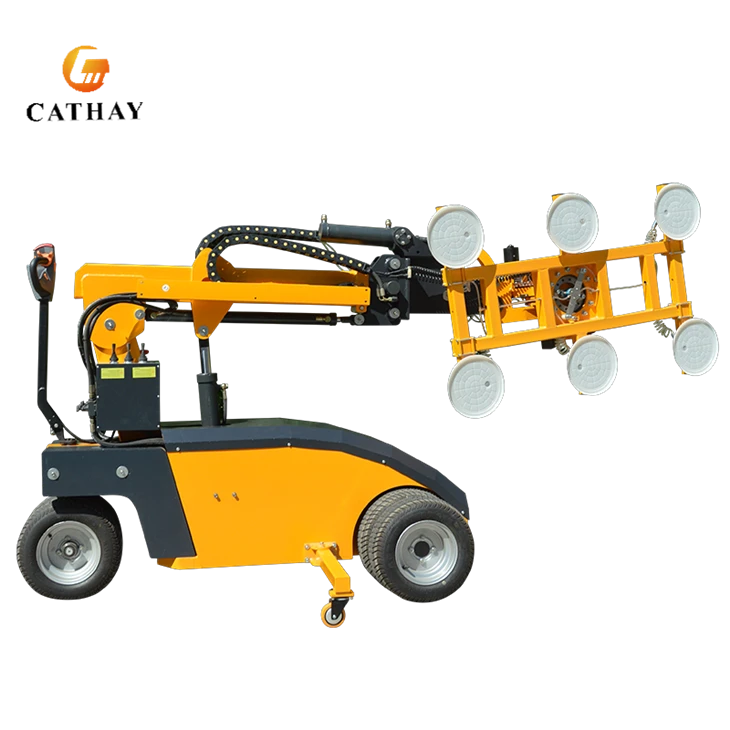

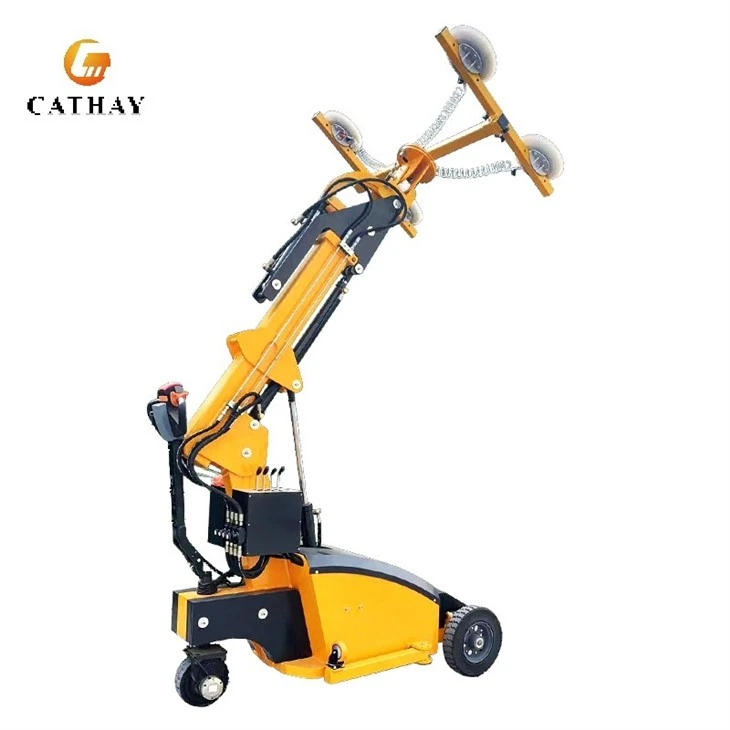

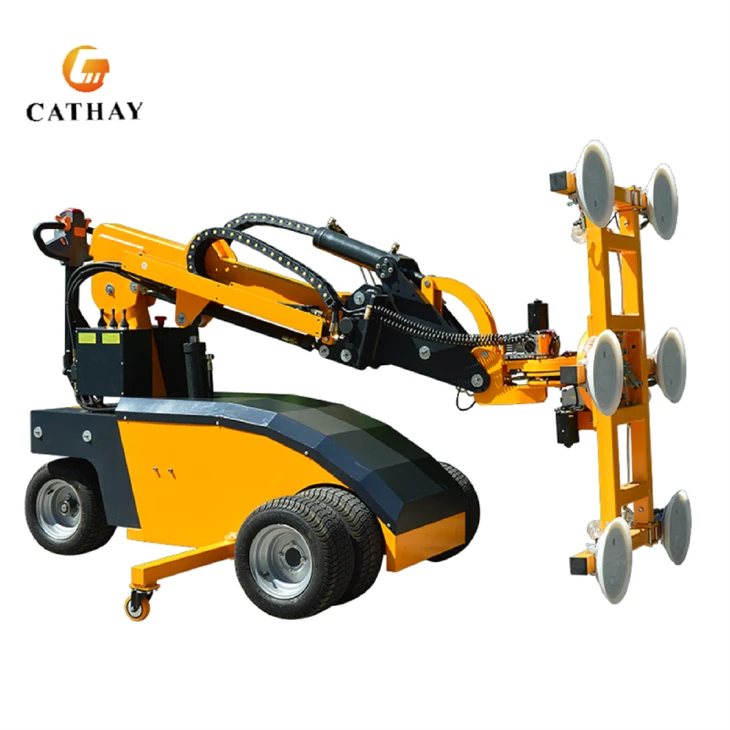

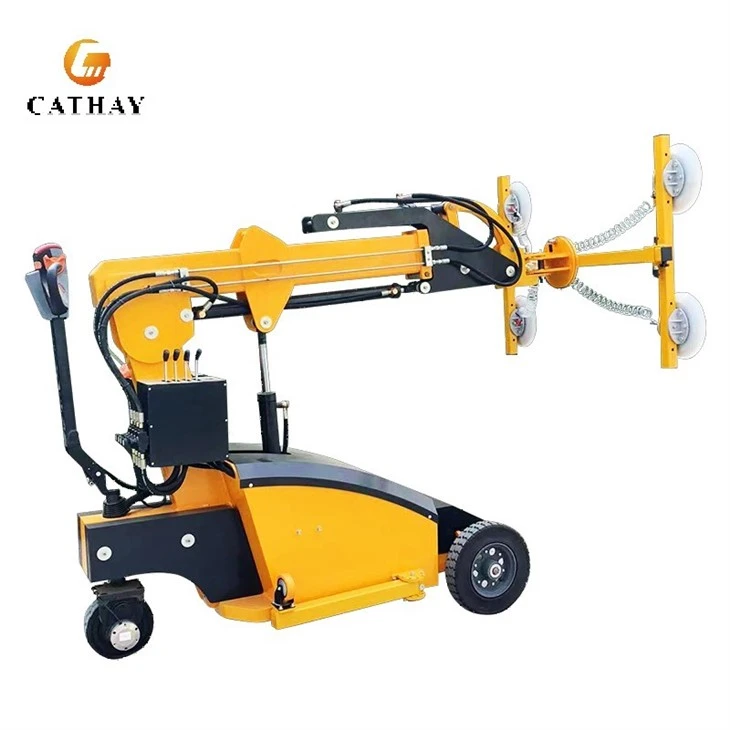

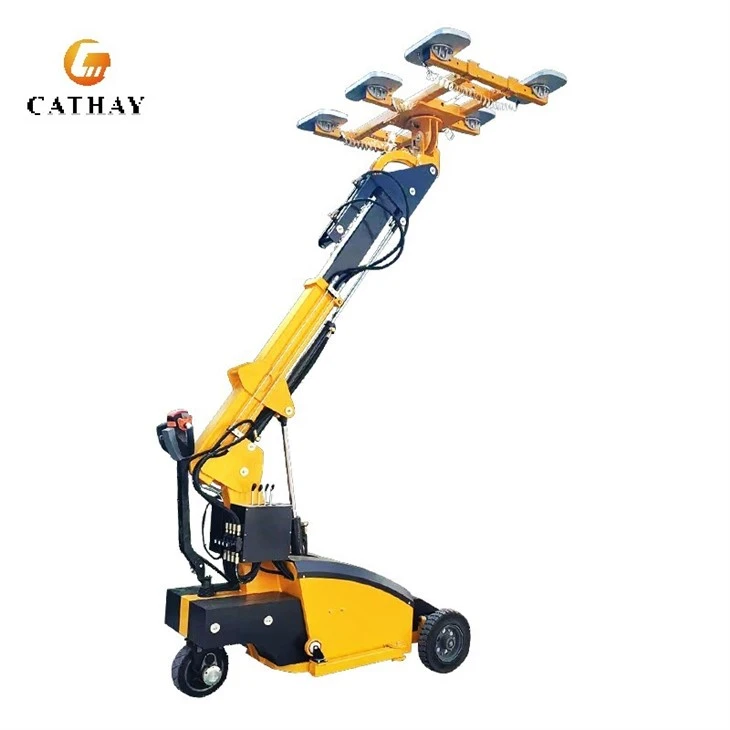

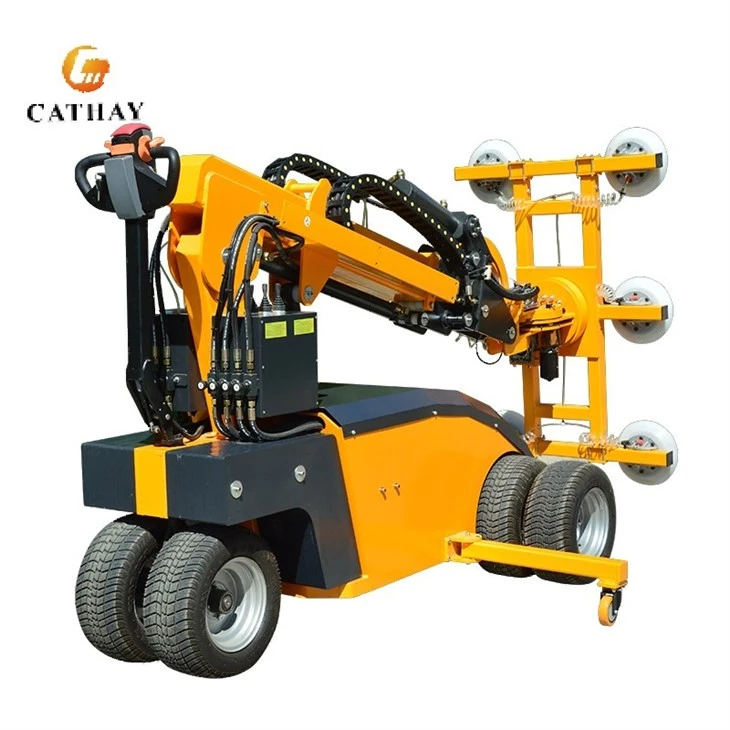

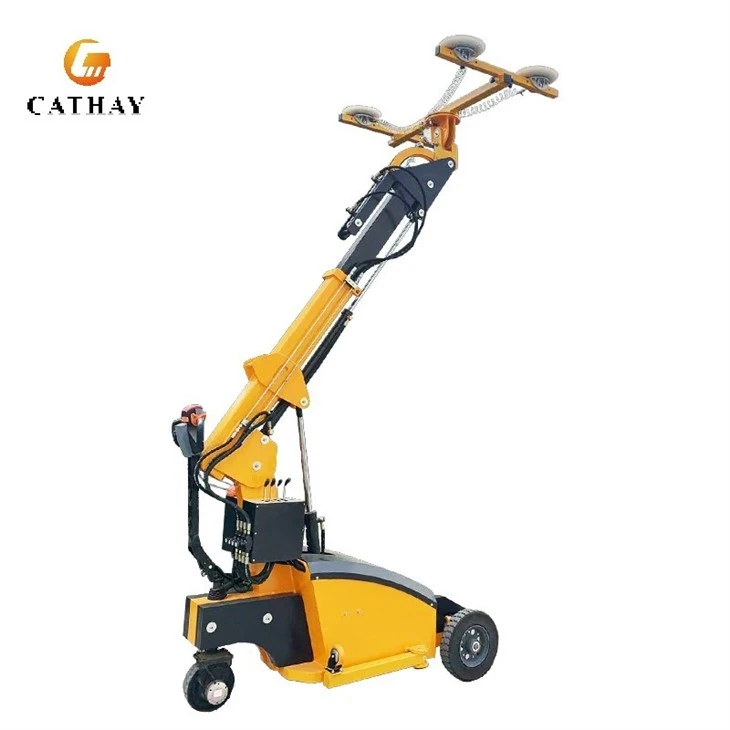

CATHAYLIFT automatic vacuum lifter for glass panel integrates mature glass vacuum suction lifting core technology to deliver intelligent automated material transport performance. This equipment was initially engineered as a stable glass panel suction lifter, capable of lifting and transporting all types of glass sheets. Beyond glass processing scenarios, it also delivers outstanding handling results for metal steel sheets, marble stone slabs and a full range of flat raw materials widely applied across construction and fabrication workshops. This enhanced glass vacuum lifting system supports flexible sucker combinations to fit different operation requirements, with standard configurations including 4, 6 and 8 suction cups for selection. Every suction unit features full 360° two-way rotating capability, and clients may pick the dual-row arrangement or request custom-shaped sucker layouts tailored to their workpieces. By adjusting the working mode of the suction assemblies on this dedicated glass vacuum lifter, operators can effortlessly manipulate the machine to hoist and flip flat materials including glass panes and marble blocks.
|
Model |
XC-L300 |
XC-L350 |
XC-L500 |
XC-L600 |
XC-L800 |
|
|
Load Capacity |
300 |
400kg |
500kg |
600kg |
800kg |
|
|
Lifting Height |
3600mm |
3600mm |
3600mm |
3600mm |
5000mm |
|
|
QTY of Suction Cap |
4pcs |
4pcs |
6pcs |
6pcs |
8pcs |
|
|
Rubber Suction Cap |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
|
|
Maintenance-free Battery |
2x12V/100AH |
2x12V/100AH |
2x12V/100AH |
2x12V/120AH |
2x12V/120AH |
|
|
Battery Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
|
|
Drive motor |
24V/600W |
24V/600W |
24V/600W |
24V/900W |
24V/1200W |
|
|
Lifting Motor |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/12L |
|
|
Front Wheel |
Ø310x100mm |
Ø310x100mm |
Ø310x100mm |
Ø375x110mm |
Ø400x150mm |
|
|
Driving Wheel |
Ø250x80mm |
Ø250x80mm |
Ø250x80mm |
Ø310x100mm |
Ø300x125mm |
|
|
N.W/G.W |
780/820kg |
1280/1330kg |
1280/1330kg |
1400/1450kg |
1600/1700kg |
|
|
Packing Size |
1940*720*1620mm |
2560*1030*1700 |
2580*1050*1700 |
2580*1050*1700 |
3000*1250*2300 |
|
|
Free Spare Parts |
1set of seal rings,fuse, 1 air pipe, air pipe joint, sucker nozzle, bolt |
|||||
|
Usages |
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. |
|||||
Advantages:
- Integrated control system for fast and automatic vertical and horizontal positioning at the touch of a button.
- DC24V reliable lift, extend and tilt actuator. Efficient and precise. Self-propelled, various circuit vacuum suction.
- The price is favorable, saving personnel and effectively improving the working environment.
- The CATHAYLIFT vacuum spreader is shot blasted and painted, with high anti-corrosion performance.
- The high-quality pump station makes the lifting and lowering of the vacuum spreader very stable.
- Heavy duty cylinder with drain system and check valve to stop the scissor lift from descending in the event of a hose burst.
- The pressure reducing valve prevents overload operation, and the flow control valve makes the descending speed adjustable.
- Simple structure, convenient operation and maintenance.
- Comply with American standard ANSI/ASME and European standard EN1570.
Safety Precautions:
- Explosion-proof valve: protect the hydraulic pipe and prevent the hydraulic pipe from breaking.
- Overflow valve: when the machine rises, it can prevent high pressure. Adjust pressure.
- Check valve: prevent the backflow of hydraulic oil
- Emergency lowering valve: When you encounter an emergency or power failure, you can use this valve to quickly drop the boom back to the retracted state.
- Dual circuit vacuum system
- Emergency stop button
- Two support legs
