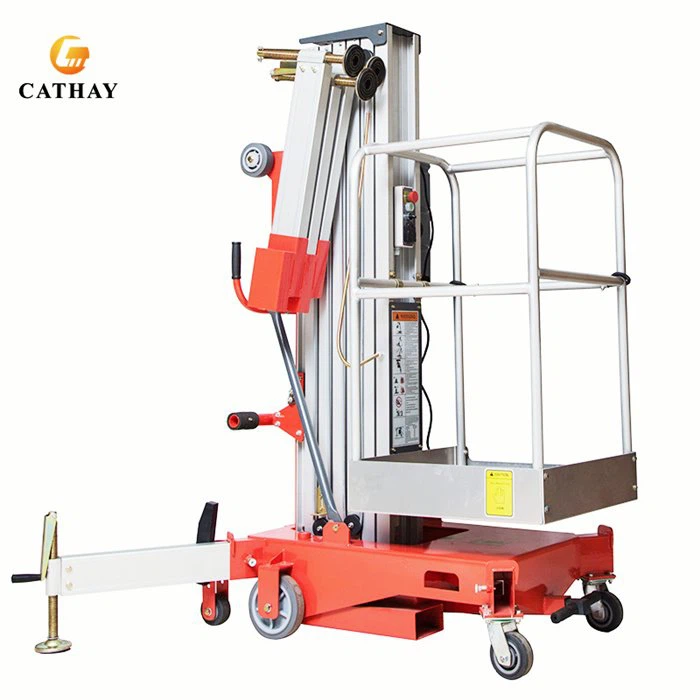

The Push Around Vertical Mast Lift is Lightweight, compact, and designed for all indoor aerial works. It can easily pass through standard doorways, through narrow aisles, into elevators, and to more previously inaccessible work areas, without causing any damage to fragile surfaces such as carpets, tiles, floors, and parquet floors. And only one person loading and unloading operation can be easily realized by utility vehicle such as a van or trailer for long-distance transportation.
Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H | |
Max.Platform Height | 5m | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 6m | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | |
Platform Size | 0.67*0.66m | ||||||
Occupants | One person | ||||||
Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m | |
Overall Size | 1.24*0.74*1.99m | 1.24*0.74*1.99m | 1.36*0.74*1.99m | 1.4*0.74*1.99m | 1.42*0.74*1.99m | 1.46*0.81*2.68m | |
Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | |
Motor Power | 0.75kw | ||||||
Options | DC | 12v | |||||
DC Motor | 1.5kw | ||||||
Charger | 12v15A | ||||||
Products Details
● Applied to various projects
● Lightweight for delicate grounds
● Compact for easy access to narrow aisles or elevators
● Easy to transport by van or trailer
● Easy to install and use
● 4 wheels and two side wheels for easy manual maneuvering
● Minimal and easy to maintain
● The best value for money
● Minimal and easy to maintain
Details Images
Ground control system/Outrigger interlocking and indicator:
Only after the four outriggers are completely installed and evenly stressed, and the four indicator lights corresponding to the four supporting legs all turn green, the machine will be powered on, and the lifting and lowering operations can be performed at this time. The red button is the emergency stop. These designs firmly eliminate the danger caused by improper operation or use of the staff.
Aviation plug and wear-resisting cable:
All our products use aviation plugs, which are easy to maintain. If an electronic component fails, the aviation plug can quickly replace the failed component. It is easy to upgrade, and new components can be replaced when the aviation plug is installed, and the old components can be replaced with new and more perfect components. With a highly flexible draggable cable, its flex life exceeds 50 times per minute, for a total of more than 5 million times. And highly waterproof, oil-proof, cold-resistant, anti-wear, UV, and weather resistant,and can withstand the external pressure of heavy machinery.
Anti-misoperation design:
The red button is the emergency stop switch, and the green button is the public switch. When the lifting operation is required, it is necessary to hold the public switch and turn the lifting button to operate. This design firmly prevents workers from operating incorrectly or accidentally touching the switch, causing the machine to move up and down dangerously.
AC Power supply on the upper control system:
Power tools can be used directly on the platform, such as chainsaws, drills, etc. The outer part of the socket is protected by a black cover, and the waterproof and dustproof grade is IP66, which can completely prevent foreign objects from entering, and can completely prevent dust from entering, and can withstand strong wave impact or strong spray When water is used, the amount of water entering the appliance should not have harmful effects.
Standard forklift hole:
Since the center of gravity of the push-around vertical mast lift is mainly concentrated on the mast side, we designed the standard forklift hole on the rear side to prevent accidents during logistics and transportation, resulting in equipment damage or personal injury
Back-up wheel for under-car:
There are two support wheels behind the forklift hole, which are designed for the staff to move it on the sloped road. The two wheels support the fuselage, which is more labor-saving and more flexible in moving and steering.
Single-person loading device:
It can be loaded into a utility vehicle such as a van or trailer by a single person, this not only improves work efficiency but also saves loading and unloading costs.
Application
Push Around Vertical Mast Lift is widely used in shopping malls, hotel properties, convention, and exhibition activity centers, Industrial plants, warehouse center, aviation maintenance, train station airport, municipal office, subway, schools, etc.
