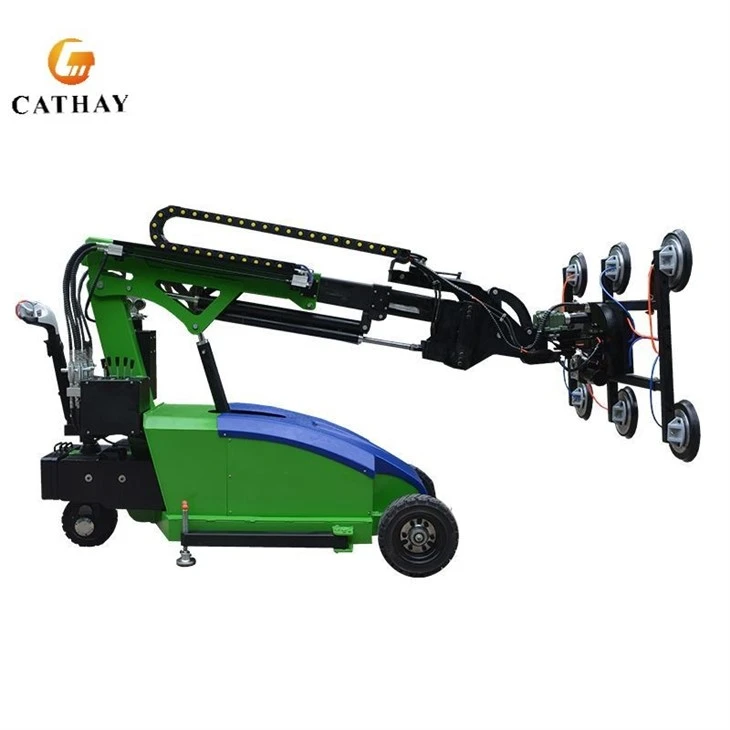

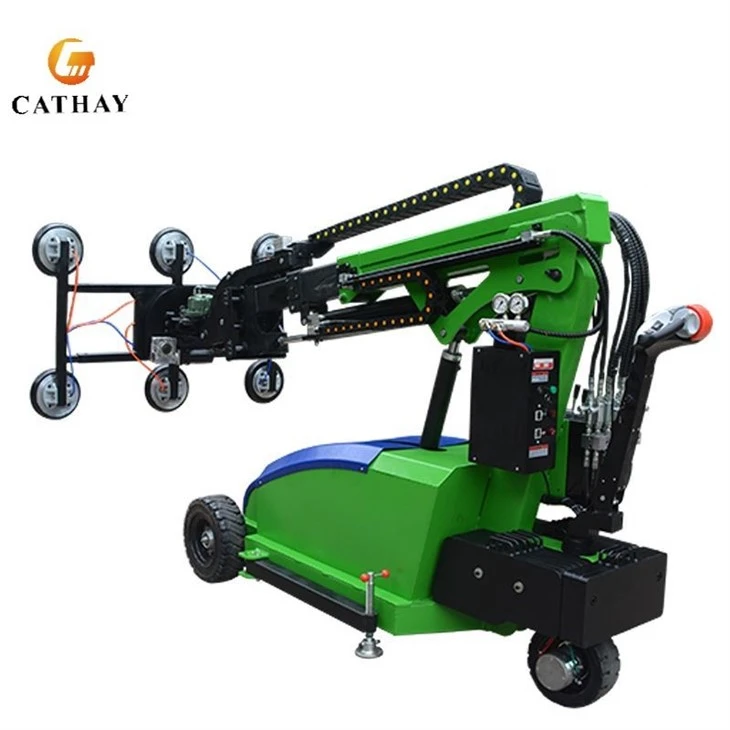

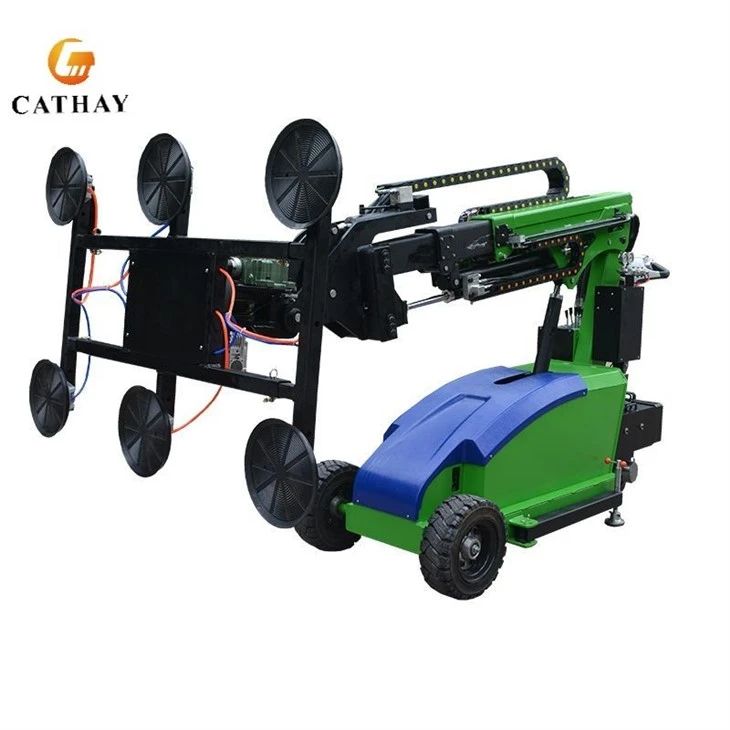

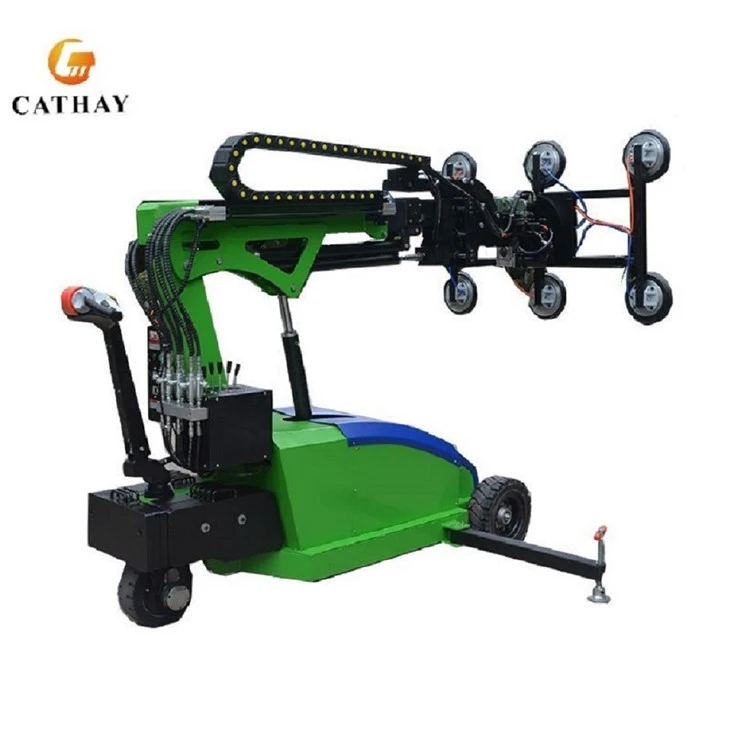

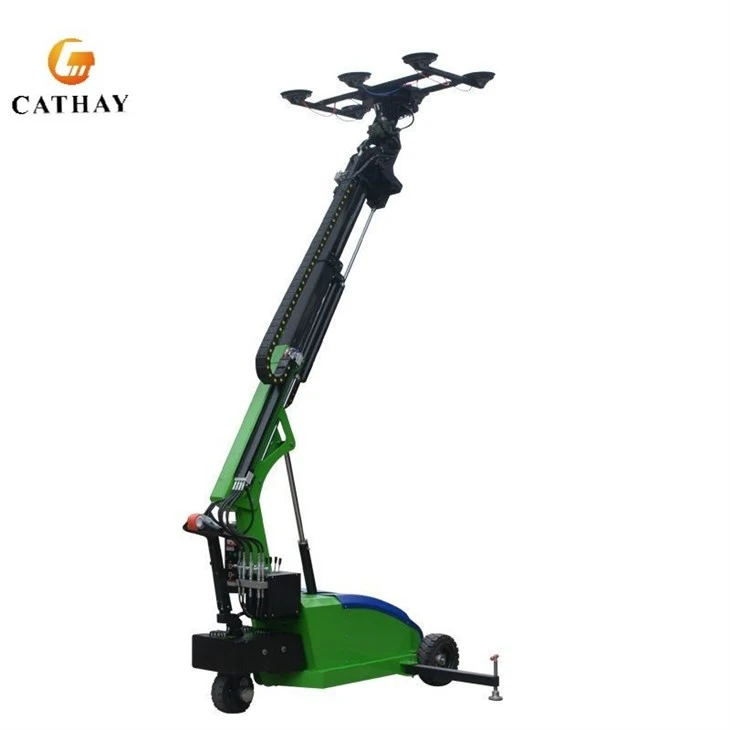

Curtain Wall Vacuum Lifter
The CATHAYLIFT curtain wall vacuum lifter is excellent for lifting and installing construction panels. These machines are compatible with a wide range of construction equipment and feature hydraulic assemblies for 4, 6, and 8 panels, offering reliable operation in various sustainable construction projects. All hydraulic panels rotate 360 degrees in both directions. Thanks to its double-row structure, the machine lifts, rotates, and moves panels with ease. It features a motor-driven hydraulic system, hydraulic lifting technology, electric rotation, and a hydraulic storage system.
Its compact size simplifies the operation of the technical components, making it ideal for construction sites with limited space. The control cable has multiple functions to facilitate operation. Equipped with a powerful motor and electronic constant speed control, this electronic device operates smoothly and efficiently, increasing safety in panel handling. The high-speed water pump allows for instant recharging and provides constant power to keep the work progressing.
|
Model |
XC-L300 |
XC-L350 |
XC-L500 |
XC-L600 |
XC-L800 |
|
|
Load Capacity |
300 |
400kg |
500kg |
600kg |
800kg |
|
|
Lifting Height |
3600mm |
3600mm |
3600mm |
3600mm |
5000mm |
|
|
QTY of Suction Cap |
4pcs |
4pcs |
6pcs |
6pcs |
8pcs |
|
|
Rubber Suction Cap |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
|
|
Maintenance-free Battery |
2x12V/100AH |
2x12V/100AH |
2x12V/100AH |
2x12V/120AH |
2x12V/120AH |
|
|
Battery Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
|
|
Drive motor |
24V/600W |
24V/600W |
24V/600W |
24V/900W |
24V/1200W |
|
|
Lifting Motor |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/12L |
|
|
Front Wheel |
Ø310x100mm |
Ø310x100mm |
Ø310x100mm |
Ø375x110mm |
Ø400x150mm |
|
|
Driving Wheel |
Ø250x80mm |
Ø250x80mm |
Ø250x80mm |
Ø310x100mm |
Ø300x125mm |
|
|
N.W/G.W |
780/820kg |
1280/1330kg |
1280/1330kg |
1400/1450kg |
1600/1700kg |
|
|
Packing Size |
1940*720*1620mm |
2560*1030*1700 |
2580*1050*1700 |
2580*1050*1700 |
3000*1250*2300 |
|
|
Free Spare Parts |
1set of seal rings,fuse, 1 air pipe, air pipe joint, sucker nozzle, bolt |
|||||
|
Movement |
Automatic (4 kinds) |
Pad frame vertical up/down 180°automatic Boom in/out 610/760mm automatic Powered arm up/down automatic 4.Lateral side shift 100mm automatic |
||||
|
Manual (2kinds) |
Pad frame tilt left/right 90° manual Pad frame rotation 360°manual |
|||||
|
Usages |
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. |
|||||
Safety Precautions:
- Explosion-proof valve: Protects the hydraulic oil piping and prevents ruptures.
- Pressure relief valve: Prevents pressure buildup when the machine is raised. Allows pressure adjustment.
- Check valve: Prevents backflow of hydraulic oil.
- Emergency lowering valve: In case of emergency or power failure, this valve is used to quickly lower the boom to its original position.
- Dual-circuit discharge system
- Emergency stop button
- Two support bases
Product Details：
Real Order:
