Classification Of The Lift Platform, Aerial Working Platforms, Hydraulic Lifts
The lifting platform is a multi-functional lifting and unloading mechanical equipment, which can be mainly divided into the following series:
Scissor type series, which can be divided into four-wheel mobile type, traction type, fixed type, self-propelled type, auxiliary self-propelled type, etc.
1. The four-wheel mobile lift is manual mobile, with four wheels for movement, simple and stable. The lowering power of each platform is two-phase, three-phase, or DC 24V, 36V power supply, and it can also be changed to some oil generators as power. The control methods include manual control and electric control. There are also hand pumps and manual lowering equipment. It can still be used normally. It has the characteristics of flexible movement, stable lifting, large load capacity, and convenient operation. It is mainly used in factories, airports, institutions, shops, stations, and architectural decoration. The lifting is stable and the operation is easy. Work sensitively and use safely. Pure manual operation. It is mainly used in industries such as factories, airports, institutions, shops, stations, and building decoration.
2. The traction lifting platform adopts external power as traction lifting mechanical equipment, which is convenient and fast to move and is suitable for long-distance work. The traction lifting platform is easy to move, suitable for various high and low outdoor terrains, and has a wide range of space operations. It is mainly used for construction, bridge construction, ship production, airports, mines, ports, terminals, communication and electrical equipment construction, and outdoor advertising engineering machinery equipment.
3. The fixed lift platform is a kind of goods lifting equipment with good lifting stability and a wide application range. It is mainly used for the transportation of goods between the height difference of the production line; the material is online and off-line; the height of the workpiece is adjusted when the workpiece is installed; Feeder feeding; large-scale equipment parts lifting; large-scale machine tool loading and unloading; warehouse loading and unloading occasions, forklift loading and unloading vehicles for rapid loading and unloading of goods, etc.
According to the specific work process, it can be equipped with appropriate optional equipment and combined, such as safety protection equipment for fixed lifting platforms; electrical control equipment; work platform equipment; power equipment, etc. The correct selection of various equipment can maximize the performance of the lifting platform and obtain the best use effect. The optional equipment of the fixed lifting platform includes artificial hydraulic power, movable flaps that are convenient to overlap with peripheral equipment, tumbling or motorized roller tables, safety touch strips to avoid foot rolling, organ-type safety shields, manual or motorized rotating work Platform, hydraulic flip table, safety support bar to prevent the lifting platform from falling, stainless steel safety net, electric or hydraulic lifting platform walking power system, universal ball table.
The fixed lifting platform can be divided into a fixed lifting platform and a double-fork lifting platform according to the structure. The double-fork lifting platform can meet the customer's request for a slender table and a high load.
4. The main features of the CLS series self-propelled hydraulic lifting platform are: the operator can control the mechanical lifting and walking without getting off the lifting platform, and can control the equipment on the platform to move to other working places. The equipment itself has the driving function of walking and turning, without manual traction and an external power supply. It is flexible and convenient to move, which makes working at heights more convenient and fast. It is the ideal high-altitude working equipment for modern companies to produce efficiently and safely. The DC electric drive wheel has a self-locking function, the brake is separated when the drive wheel is working, and it is automatically locked when it is not working.
The self-propelled lifting platform consists of the following parts:
a. Scissor-type main structure, telescopic workbench, and safety guardrail.
b. Active walking DC electric drive wheel.
c. Hydraulic system: pump station, oil cylinder, etc.
d. DC power supply, charger.
e. Electric control box and operation box.

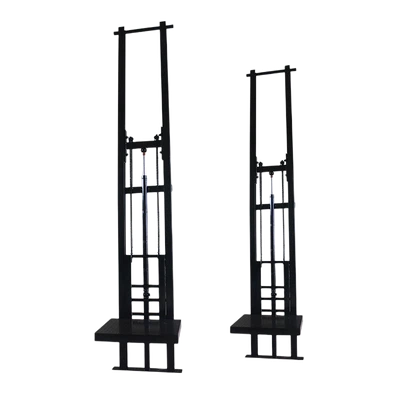

Guide rail lifting platform:
The guide rail lift is a non-scissor hydraulic lifting mechanical equipment, which is used for the transportation of goods between the second and third floors of industrial plants, restaurants, and restaurants. The minimum height is 150-300mm, especially suitable for workplaces where pits cannot be excavated. And there is no need for upper lifting points, and the methods are diversified (single column, double column, four columns). The equipment works smoothly. The guide rail of the guide rail elevator is usually made of channel steel, I-beam, and square tube welding. The operation is simple and reliable, and the goods are transported economically. fast.
In addition to the safety equipment of the traditional traction elevator, the hydraulic elevator is also equipped with: an overflow valve: to prevent the system pressure from being too high during upward movement; an emergency manual valve: when the power fails, the car can be lowered to the nearest Open the door at the floor position, manual pump: when the system fails, the manual pump can be used to pump high-pressure oil to make the car ride to the nearest floor position; pipeline rupture valve: when the hydraulic system pipeline is broken, the car stalls and lowers, It can automatically cut off the oil circuit to stop the lowering. Fuel tank oil temperature protection: When the oil temperature in the fuel tank exceeds the standard setting value, the oil temperature protection device will send out a signal to suspend the operation of the elevator, and the elevator can be started only after the oil temperature drops.
Low cost and low failure rate: due to the use of leading hydraulic systems and excellent control methods, the failure rate of the elevator can be minimized. Low power consumption: When the hydraulic elevator goes down, it is driven by the pressure generated by its own weight, which greatly saves energy.
Aluminum alloy lifting platform
The aluminum alloy lift platform is made of high-strength and excellent aluminum alloy material, which has the advantages of beautiful appearance, small size, lightweight, flexible operation, and convenient promotion. It has the advantages of stable lifting, safe, and reliability. With its light appearance, it can perform the highest lifting capacity in a very small space. Widely used in factories, hotels, restaurants, stations, theaters, exhibition halls, and other occasions, it is the best safe companion for maintenance of machinery, paint decoration, interchangeable lamps, electrical appliances, cleaning, and maintenance, etc.
The main products are divided into single-mast aluminum alloy platforms, double-mast aluminum alloy lifting platforms, self-propelled aluminum alloy lifting platform
Single-mast aluminum alloy lift platform: This series of products are indoor type, widely used in high-altitude work in star hotels, large supermarkets, and other professional halls and factories. And it consumes less power, has no pollution, and does not hurt the ground when working. It can be used for wall-mounted work and protruding work, and there is no dead angle in the work. The single-column aluminum alloy electric lift is equipped with gantry cross attachments, which are very suitable for repair work in theaters, auditoriums, churches, etc. The gantry span is easy to assemble, labor-saving to operate, and sensitive to movement. It can cross obstacles such as fixed seats with a height of 1.1m and can work stably on steps. Made of high-strength rectangular steel pipe, it has good rigidity and stability. Equipped with universal casters, flexible and flexible. The span of the two ends is adjustable, which can meet the requirements of crossing different obstacles. The two ends are vertically adjustable and can be used for working on slopes or steps with a certain inclination.
Double-mast aluminum alloy lift platform: a new generation of products with a new design, all made of high-strength aluminum profiles. Due to the high strength of the profiles, the deflection and swing of the lifting platform are extremely small. It adopts a double-mast structure, which has a large load capacity, large platform area, excellent stability, flexible operation, and convenient promotion. With its light appearance, it can perform the highest lifting capacity in a very small space. The elevator is widely used in factories, hotels, buildings, shopping malls, stations, airports, stadiums, etc. It can be used for high-altitude work such as power lines, lighting appliances, elevated pipelines and other equipment protection, high-altitude cleaning and other single-person work.
Features: High-strength and high-quality aluminum alloy materials are used, which have the advantages of beautiful appearance, small size, lightweight, stable lifting, safety, and reliability. With its light appearance, it can perform the highest lifting capacity in a very small space. The column lifting system has the characteristics of large load capacity, strong stability, large platform area, and convenient promotion.
Straight, articulating, boom lifts
The articulating boom lift is an updated product of the folding arm lift. It can work overhangs, cross certain obstacles, or lift at one place to carry out multi-point work; 360-degree rotation, the platform has a large load capacity, and can be used by two or more people to work together and carry certain equipment; the mobility of the lifting platform Good, it is convenient to move the site; the appearance is beautiful, and it is suitable for large-scale work such as stations, docks, shopping malls, stadiums, residential properties, factories, and mines.
Articulated boom aerial work platforms can be divided into two types: straight arm and curved arm according to the arm span method. They are mostly used in places with high height requirements such as shipyards. This type of machine is safe and easy to move, but the cost is high. Widely used in factories, active warehouses, parking lots, municipalities, stations, airports, theaters, exhibition halls, docks, construction, decoration, logistics, electricity, transportation, petroleum, chemical, hotels, gymnasiums, industrial and mining, companies, etc. repair. It is the best choice for the maintenance of equipment, paint decoration, replacement of lamps, electrical appliances, cleaning, maintenance, etc. It can be planned and manufactured according to the application requirements. Fire brigades generally use this kind of lift.
The above is a detailed and professional explanation of the classification of the lift platform by Shandong Cathay Machinery Co., Ltd. Please contact us for more details on lift platforms
