Telescopic Boom Electric Floor Crane

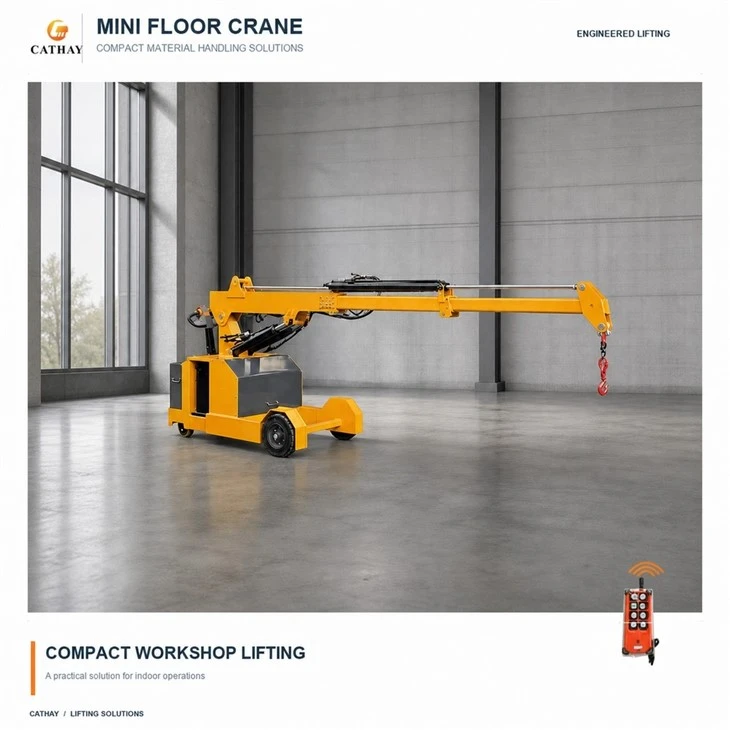

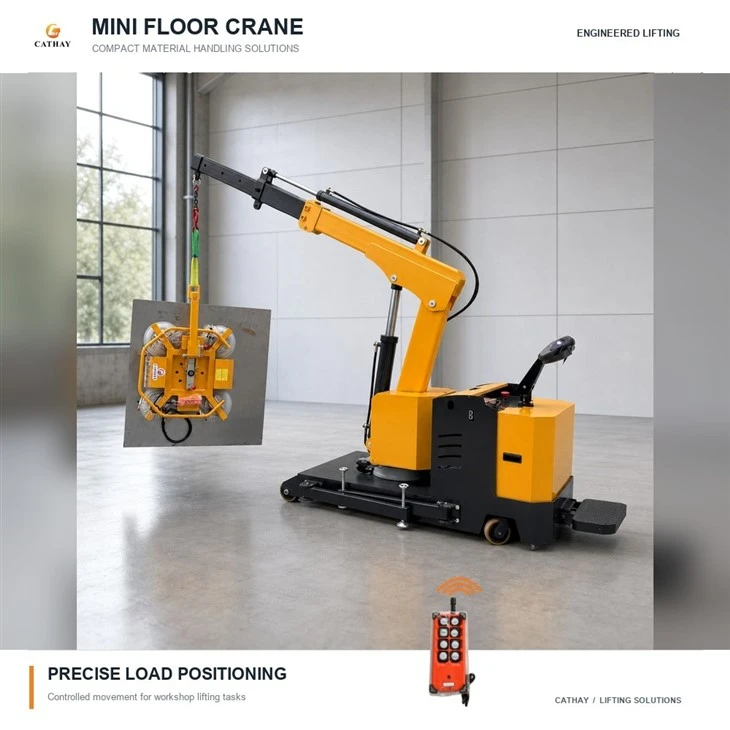

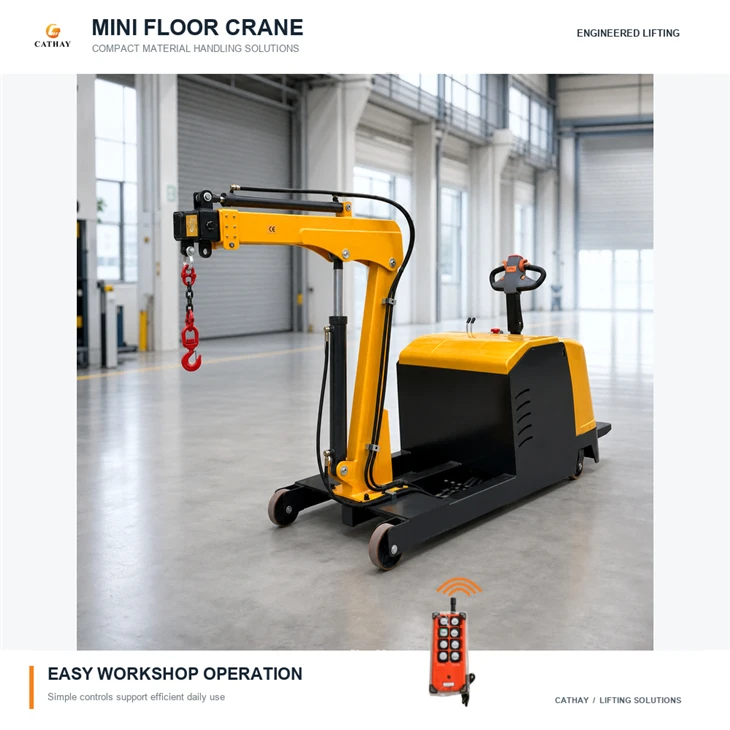

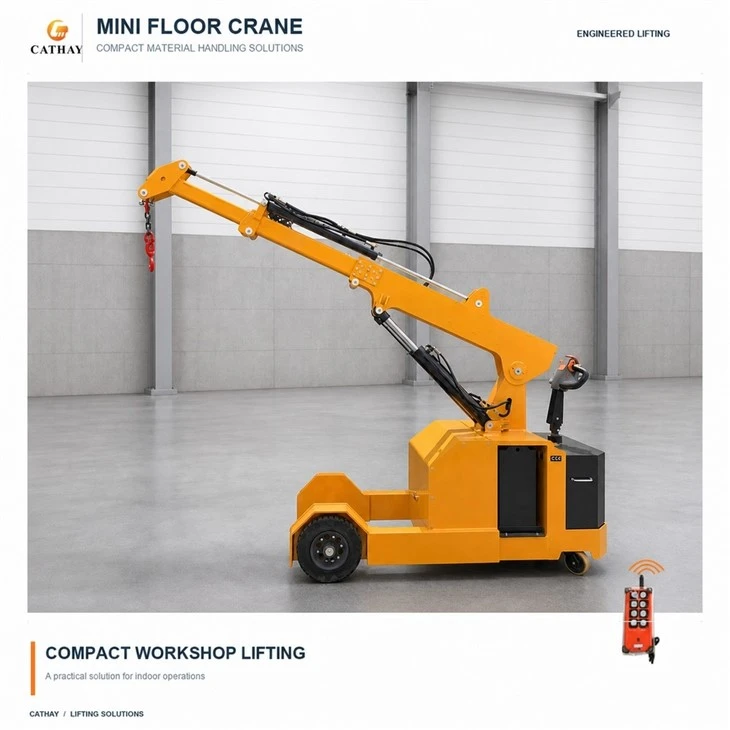

The CATHAY Telescopic Boom Electric Floor Crane is a self-propelled lifting unit built for indoor material handling where space is tight. Its multi-stage telescopic boom extends and retracts electrically, allowing operators to reach loads positioned deep inside machinery or shelves without moving the entire machine. Six configurations (CSEC-700, CSEC-1200, CSEC-1200A, CSEC-900R, CSEC-2000-3.5, CSEC-2000-5.0) cover lifting capacities from 700 kg up to 2,000 kg, with maximum lift heights reaching 3.5 m or 5.0 m depending on the version.
The crane runs on a 24 V DC system powered by two 12 V deep-cycle batteries, so it travels freely around workshops with zero exhaust and low noise. Electric boom lift and extension provide smooth, controlled positioning, while variable forward/reverse travel and an automatic electromagnetic brake make maneuvering in narrow aisles safe and precise.

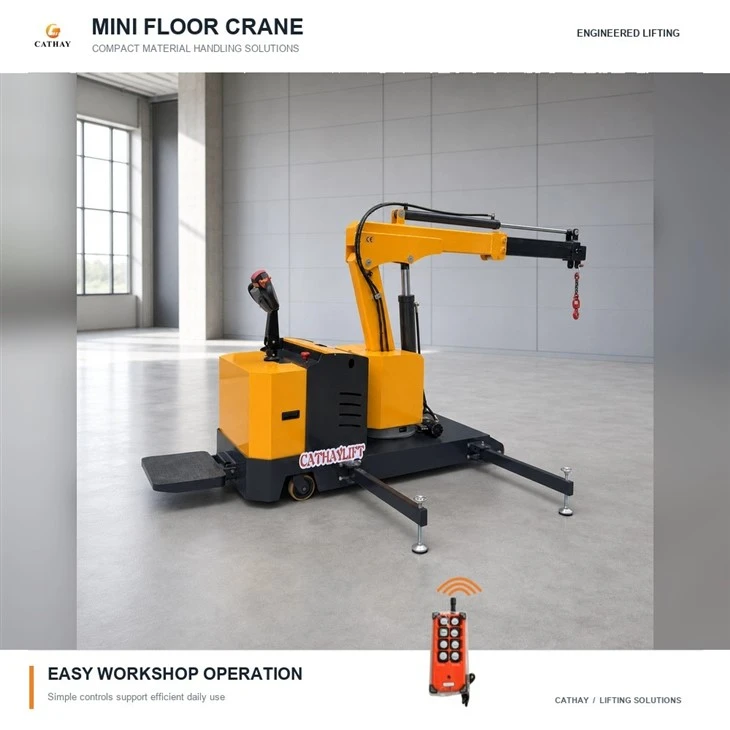

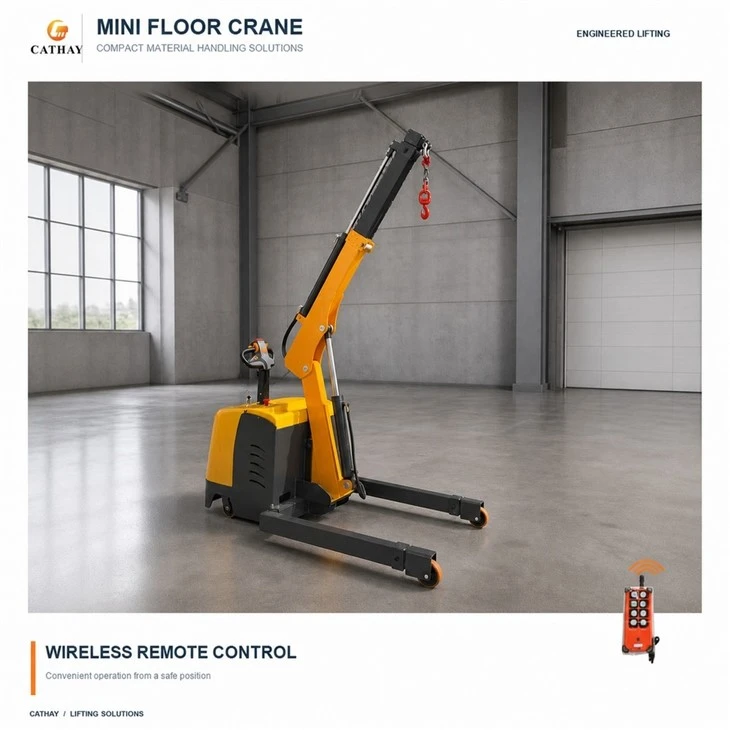

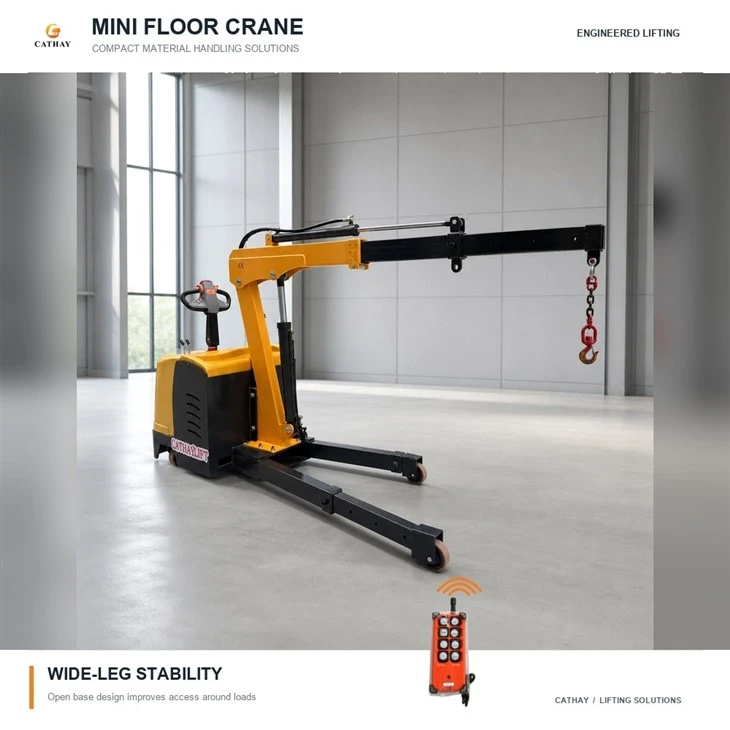

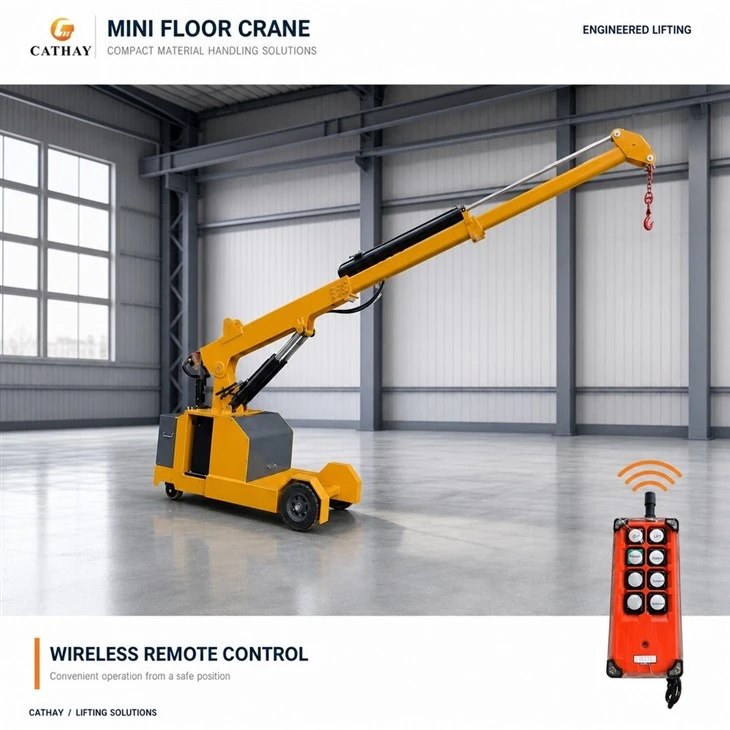

Different chassis options suit different jobs: adjustable angled or straight support legs stabilize the crane on uneven concrete floors, and the CSEC-900R adds 180° electric rotation to cover wider working angles. An optional wireless remote control lets the operator stand at a safe distance during lifting.
Typical applications include mold handling, equipment maintenance, machine-shop part positioning and in-plant logistics. With a compact footprint and robust welded steel frame, this telescopic boom floor crane offers flexible, low-cost indoor lifting that eliminates the need for overhead cranes or stationary hoists.
Product Safety Features

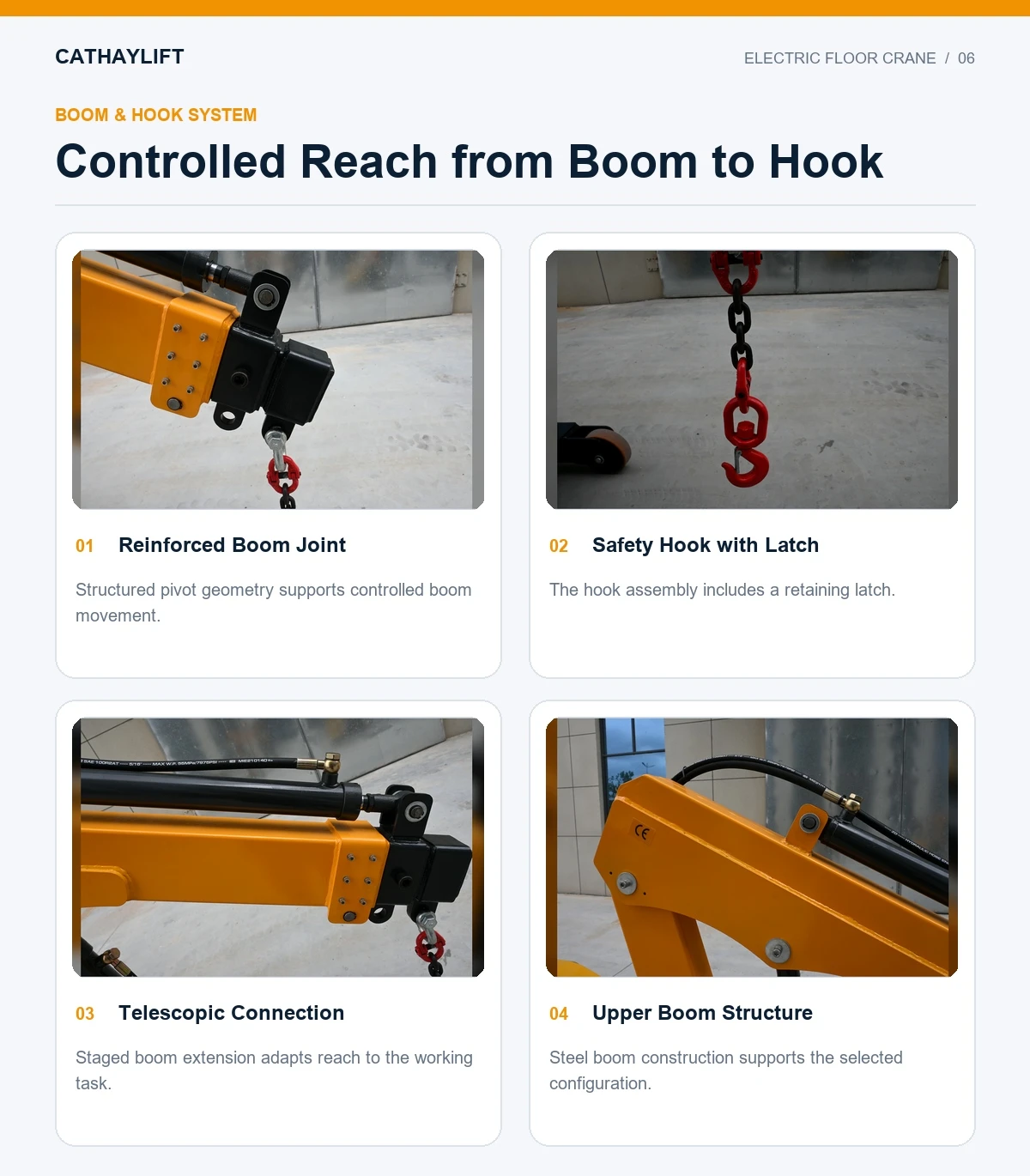

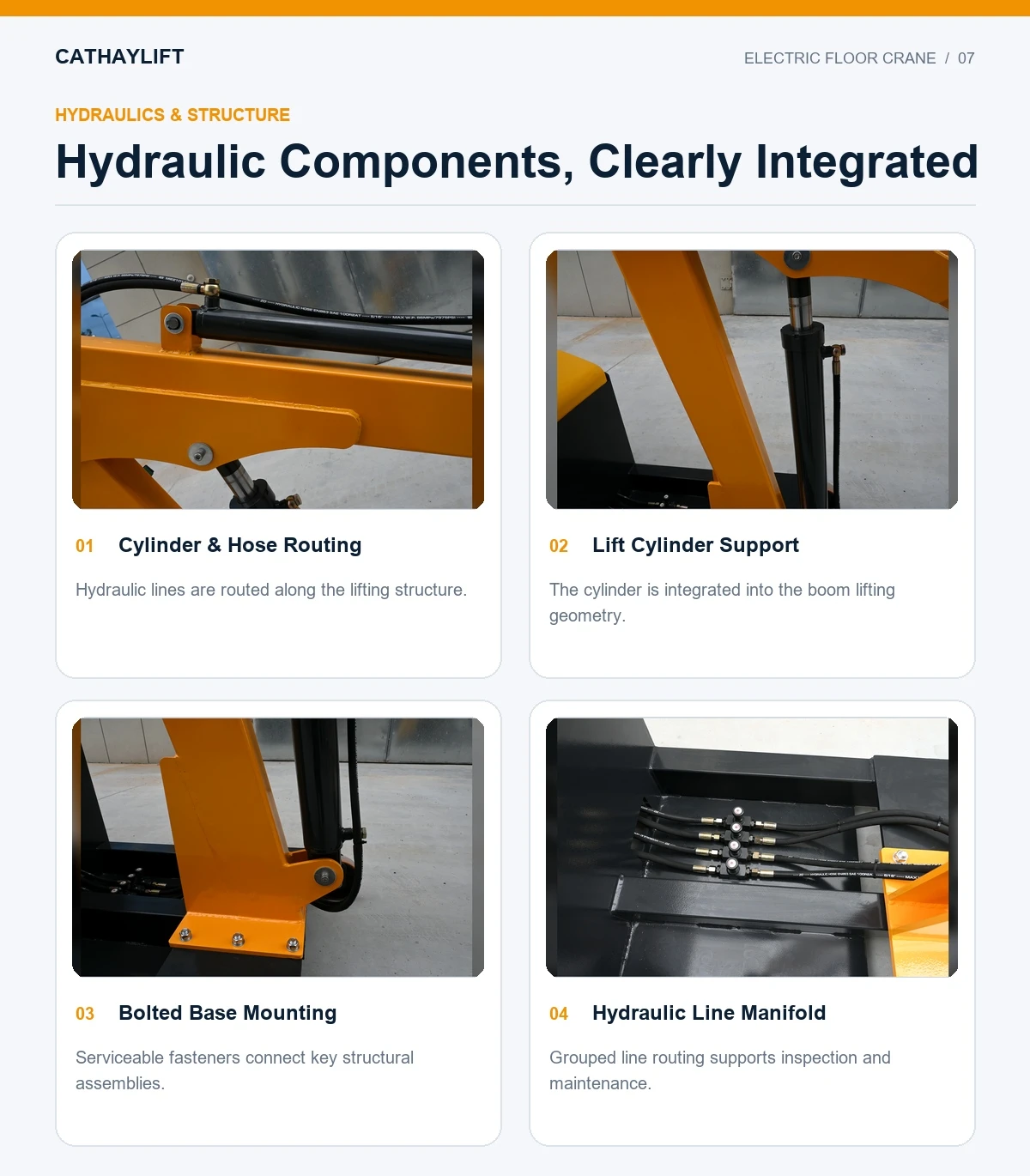

The electromagnetic brake activates automatically to hold loads steadily. Hydraulic velocity fuse stops sudden boom descent if pressure fails. Emergency stop and reverse functions prevent collision risks. Safety latch on the lifting hook avoids load slippage. Robust welded steel frame withstands repeated heavy-duty lifting cycles for long-term use.
Product Performance Highlights
Powered by a 24V battery pack, the crane enables cordless, low-noise indoor movement. Electrically driven telescopic boom delivers gradual, fine-tuned load positioning. Multiple capacity variants (700–2000kg) and 3.5m/5m lifting heights accommodate diverse workloads. Adjustable support leg layouts adapt to uneven workshop floors. Select versions support 180° boom rotation; wireless remote control is optional for flexible operation.
Product Details
This telescopic boom electric floor crane adopts heavy welded steel construction. It uses a 24V DC power system with twin 12V deep-cycle batteries and an integrated charger. The multi-stage boom delivers smooth electric lifting and extension. Adjustable straight or angled support legs offer stable support on uneven workshop ground. Selected models feature 180° electric rotation for wider coverage. Operators can control travel and lifting via onboard handle, with optional wireless remote available. Built-in electromagnetic brake and hydraulic velocity fuse prevent unexpected load drop. Available capacities range from 700kg to 2000kg, max lifting height up to 5m. Ideal for mold moving and indoor equipment maintenance.
Real Order
|
Model Type |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Horizontal Reach |
1280+610+610mm |
1280+610+610mm |
1220+610+610mm |
1280mm+610mm+610mm |
|
Load Capacity |
1200kg |
1200kg (1280mm) |
700kg (1220mm) |
900kg (1280mm) |
|
Load Capacity (stage 1) |
600kg (1280~1890mm) |
400kg (1220~1830mm) |
450kg (1280~1890mm) |
|
|
Load Capacity (stage 2) |
300kg(1890~2500mm) |
200kg (1890~2440mm) |
250kg (1890~2500mm) |
|
|
Max Lifting Height |
3570mm |
3540mm |
3560mm |
3180mm |
|
Min Lifting Height |
960mm |
935mm |
950mm |
1410mm |
|
Retracted size (W*L*H) |
1920*760*1600mm |
1865*1490*1570mm |
2595*760*1580mm |
2000*1854*1550mm |
|
Arm Electric Rotation |
/ |
/ |
/ |
120°left/right |
