Electric Workshop Floor Crane

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric workshop floor crane in China. We warmly welcome you to buy discount electric workshop floor crane for sale here from our factory. Quality products and reasonable price are available.

Electric Workshop Floor Crane

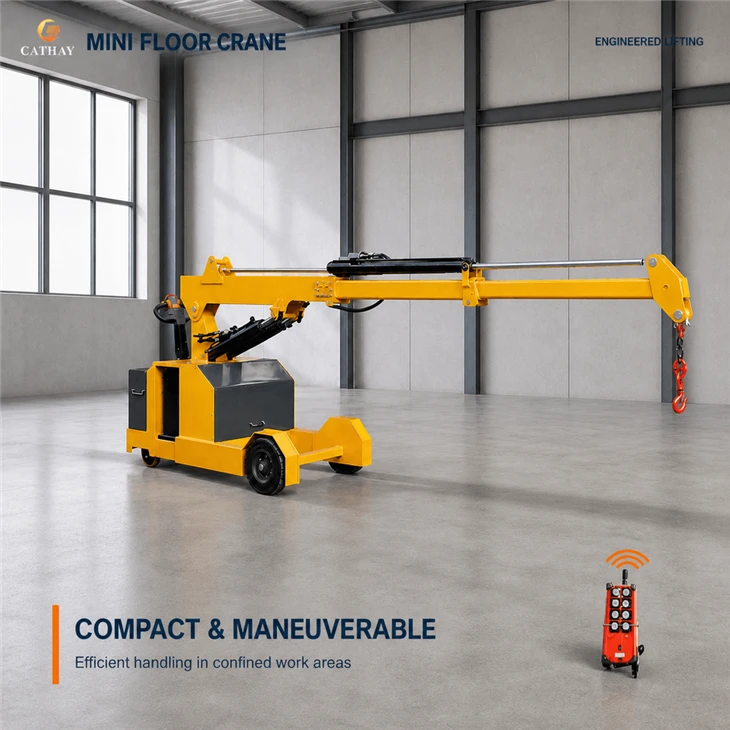

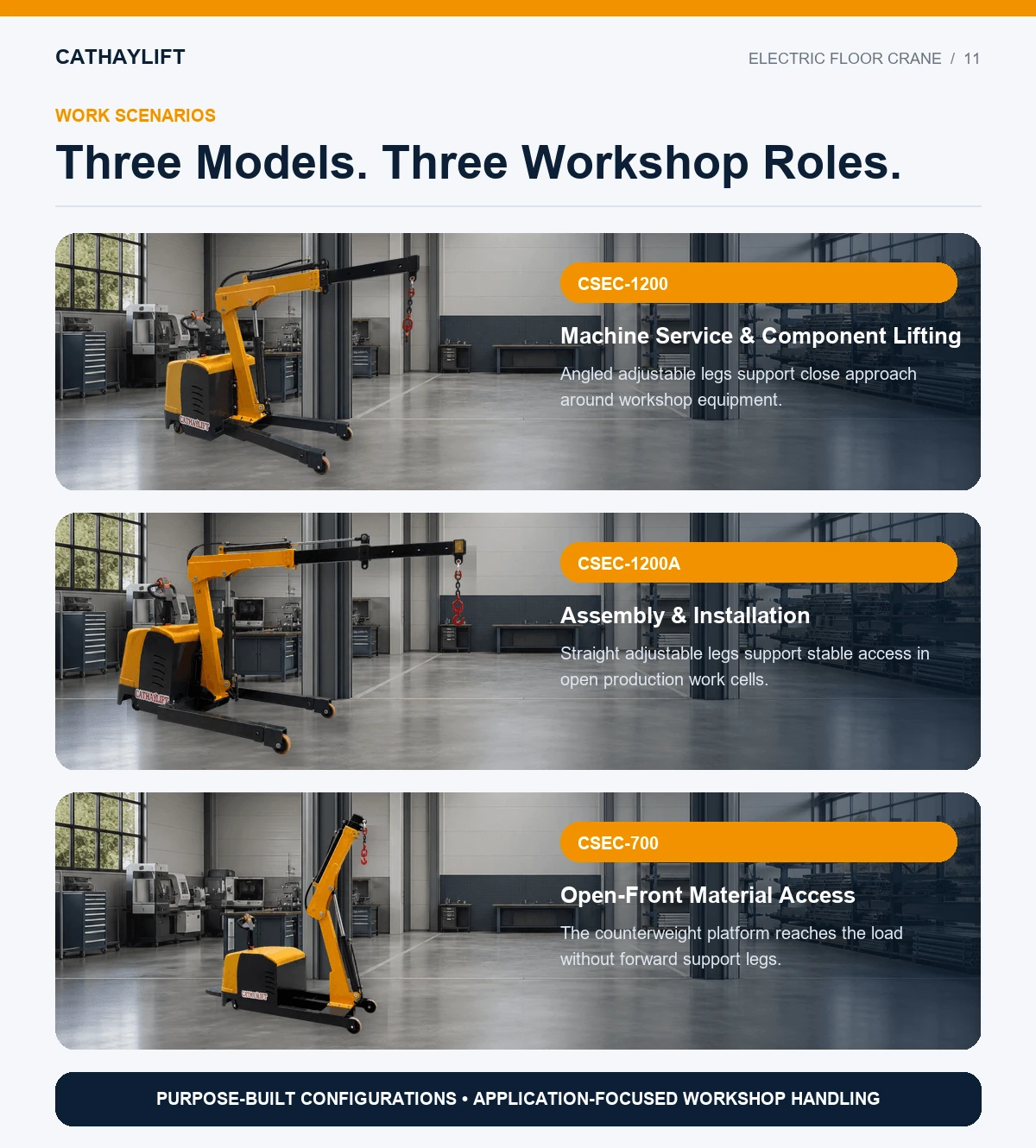

CATHAYLIFT Electric Workshop Floor Crane is engineered to deliver flexible material‑handling performance for workshops, equipment maintenance, mold installation, and logistics operations. Different configurations include adjustable angled or straight support legs, counterweight base, and the special CSEC‑900R variant with ±90° electric rotation for offset‑position lifting work. Multi‑stage telescopic booms deliver varied outreach, while each model has graded boom‑stage load ratings, reminding operators that actual safe capacity decreases as the boom extends further.

Powered by a 24 V DC system with dual 12V deep‑cycle batteries and an on‑board charger, the Electric Workshop Floor Crane achieves full electric travel, boom lifting and boom extension without manual hydraulic pumping. Compact overall dimensions allow easy movement through narrow factory aisles where overhead cranes or large lifting machines cannot operate. Built to comply with EU Machinery Directive 2006/42/EC and relevant ISO safety standards, the series provides reliable, CE‑certified lifting solutions for global industrial clients, with optional wireless remote control available for most models to expand operational flexibility.

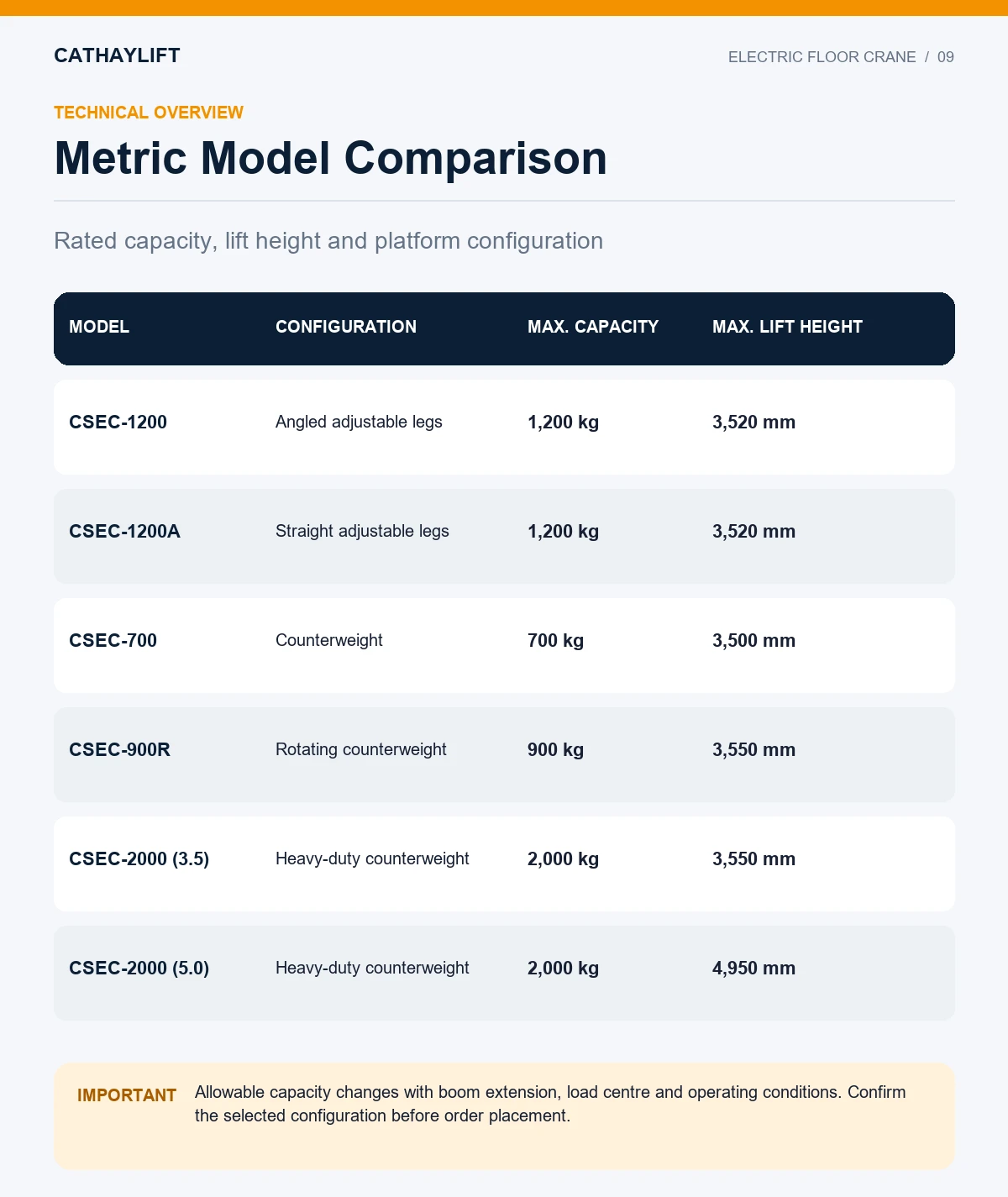

1. Six‑model portfolio covers 700 kg‑2000 kg capacity, with support‑leg, counterweight and electrically rotating counterweight versions to match different site constraints and load‑handling needs.
2. 24 V DC power system supports electric driving, lifting and boom extension; integrated battery indicator and built‑in charger simplify daily use, no external power cable required during operation.

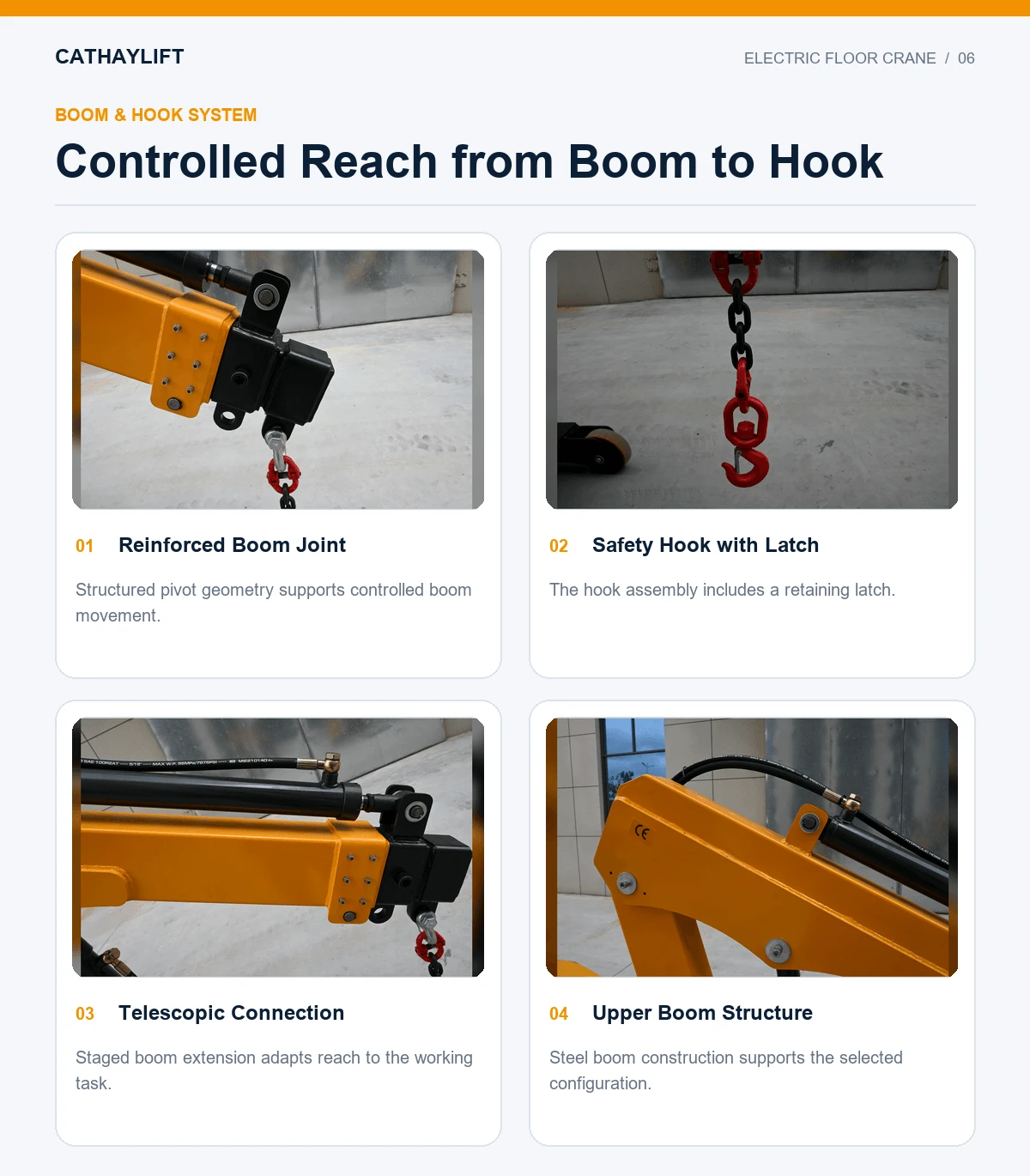

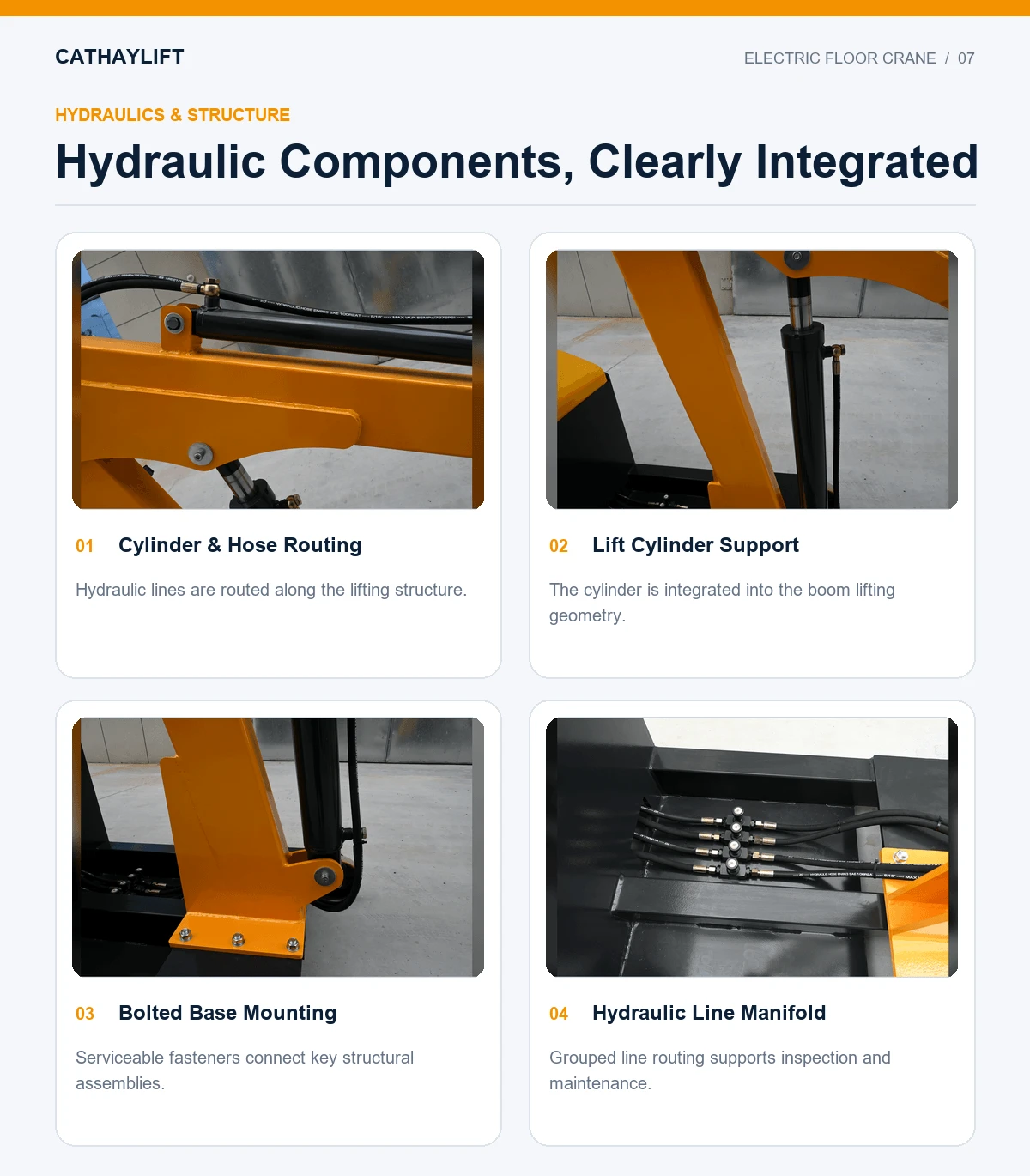

3. Equipped with hydraulic velocity fuse, flow‑control protection, automatic dead‑man electromagnetic brake, emergency‑reverse button, horn and safety hook with latch for accident prevention.

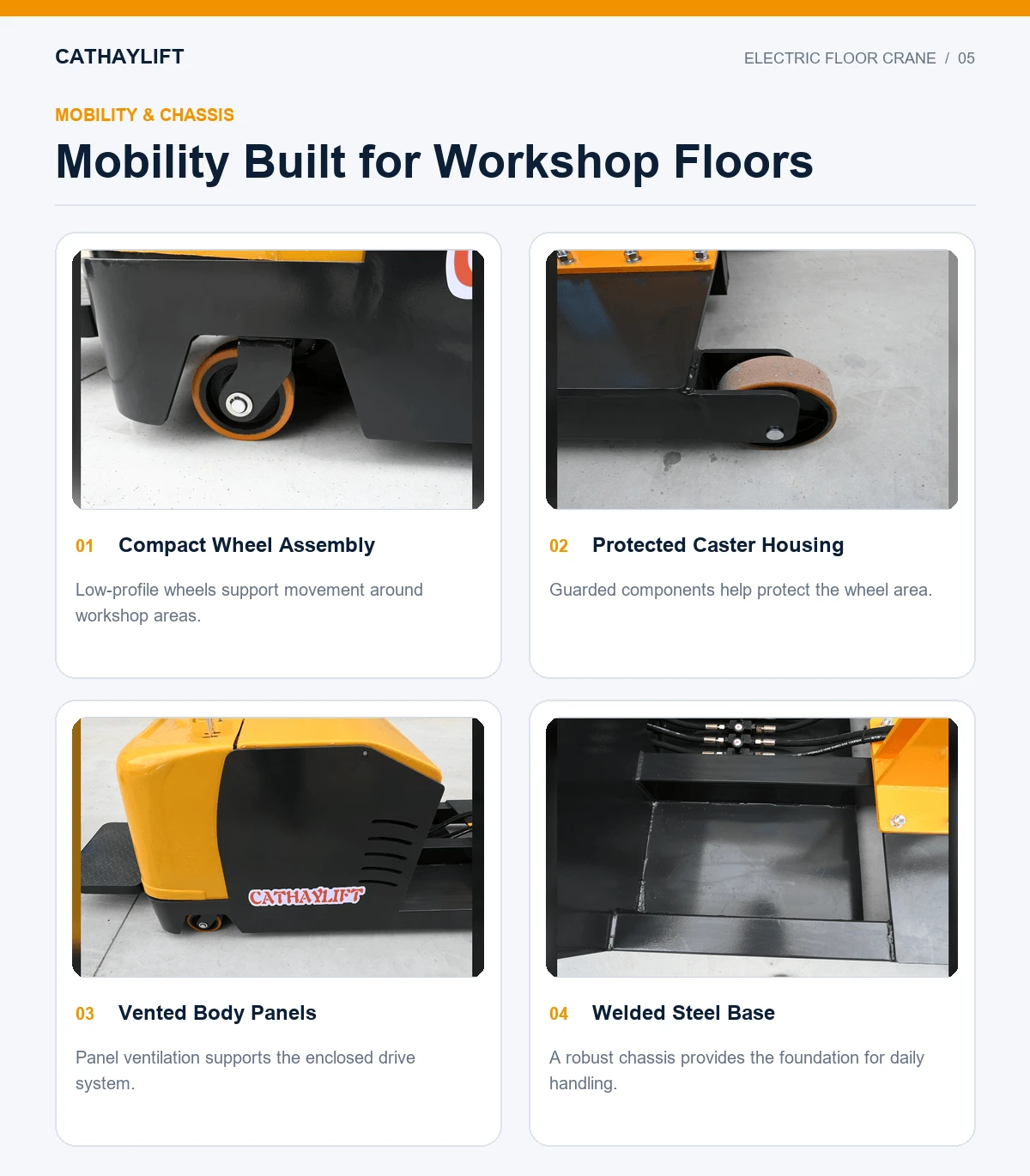

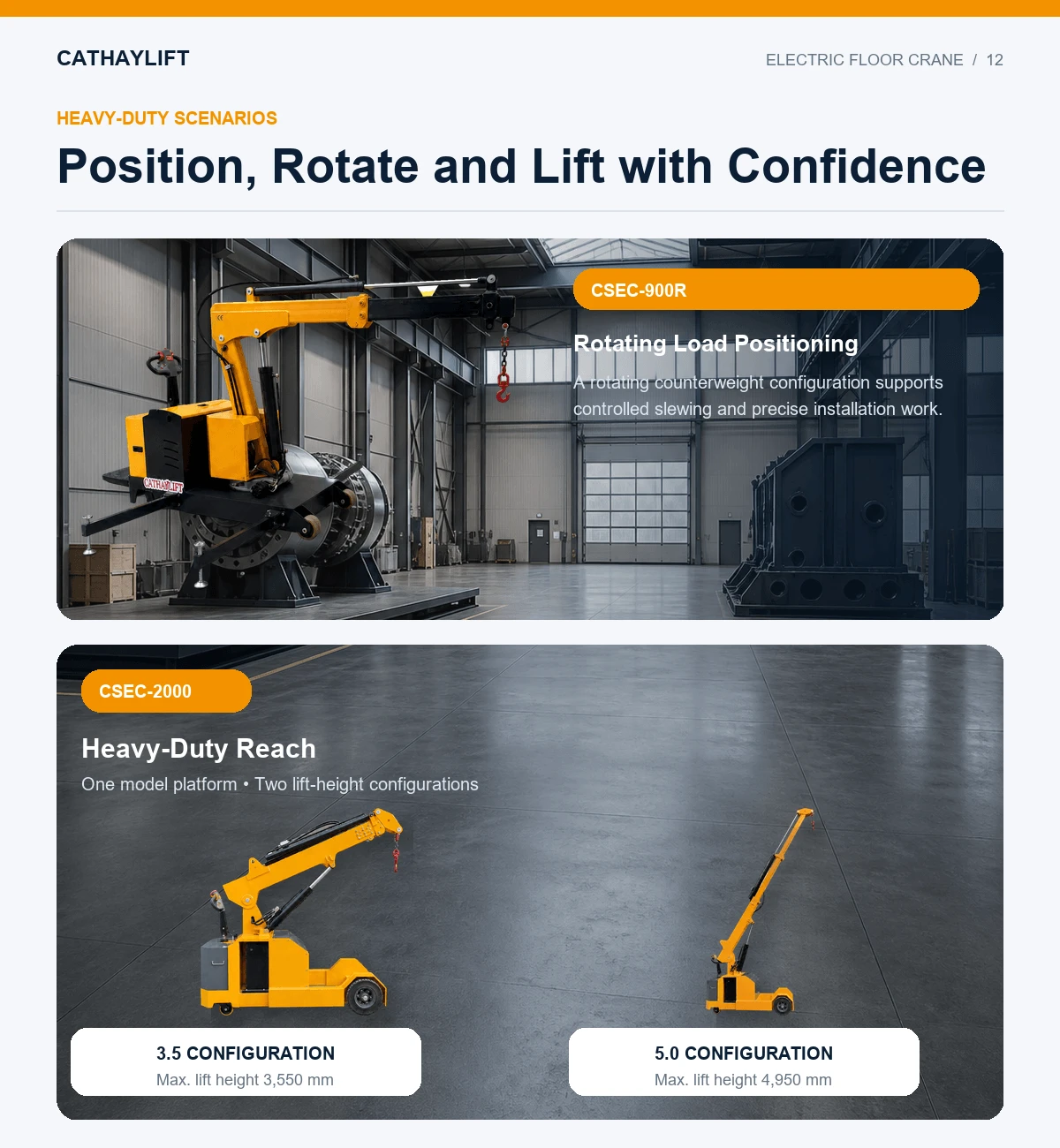

4. Compact chassis design works well in narrow‑space workshops; CSEC‑900R supports ±90° powered rotation to handle offset‑side lifting tasks without repositioning the whole machine.

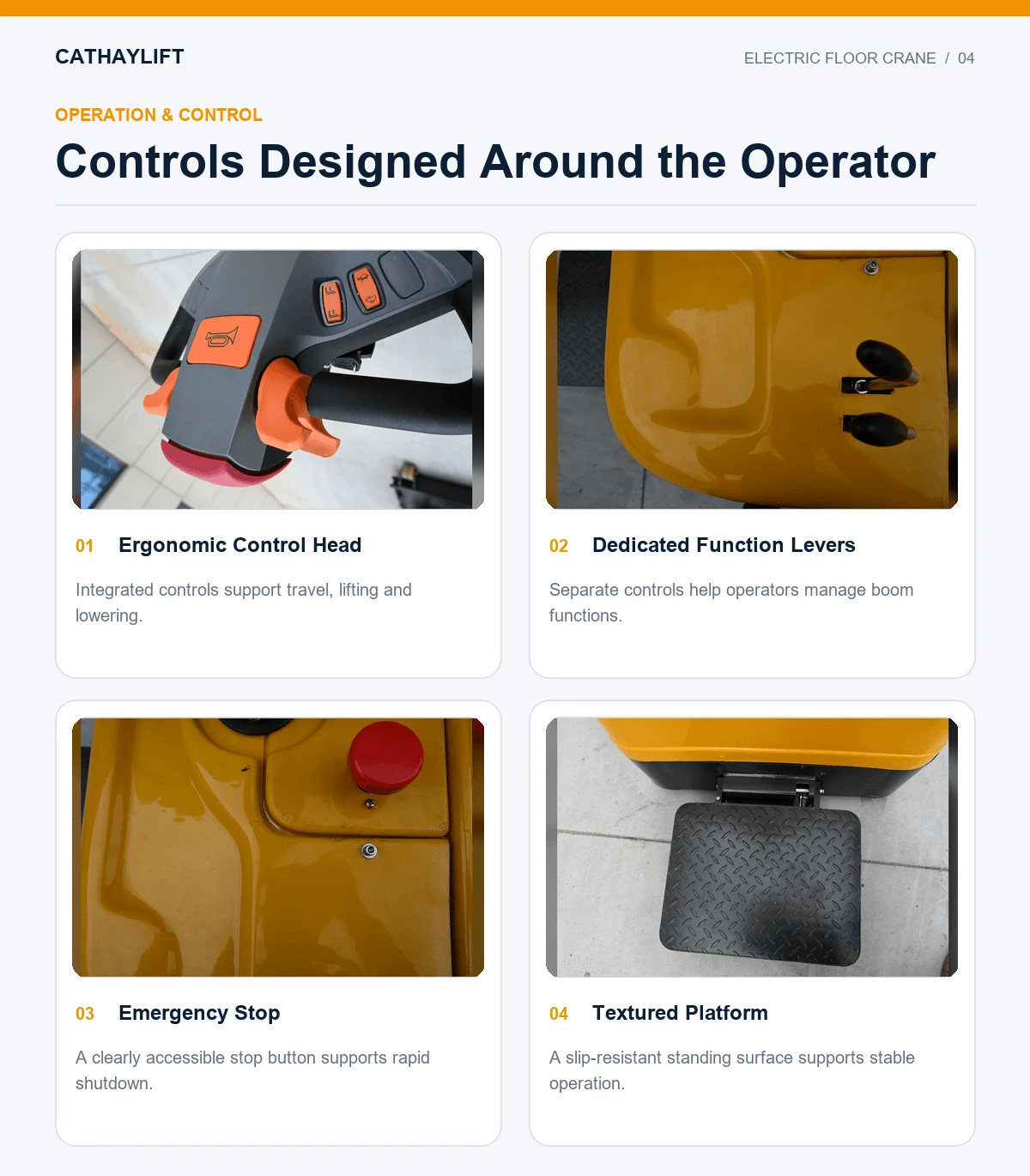

5. Human‑centered drive handle with clearly marked control buttons; wireless remote control is standard for CSEC‑900R and optional for other models for flexible operator positioning.
6. Manufactured complying with EU Machinery Directive, EN ISO 12100 and EMC standards; CE declaration of conformity can be supplied for export projects, also referencing ASME B30 for North‑American‑market applications.
