Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of buy towable boom lift in China. We warmly welcome you to buy discount buy towable boom lift for sale here from our factory. Quality products and reasonable price are available.
buy towable boom lift
buy towable boom lift boasts a flexible design and superior performance, combining powerful climbing ability, flexible boom extension capability, and excellent terrain adaptability. All towable boom lift are constructed with high-strength steel and premium hydraulic components to extend their service life. We support parameter customization, fast delivery, and comprehensive after-sales service. Our towable boom lift are suitable for commercial rental, engineering construction, and routine maintenance, providing efficient and safe work solutions at highly competitive factory prices.
|
Model Type |
CTA-12A |
CTA-14A |
CTA-16T |
CTA-18T |
CTA-20T |
CTA-22T |
|
Version |
Articulated |
Telescopic |
||||
|
Lifting Height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working Height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
300KG/227KG |
|||||
|
Platform Size |
0.9*0.7M |
|||||
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size ( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |

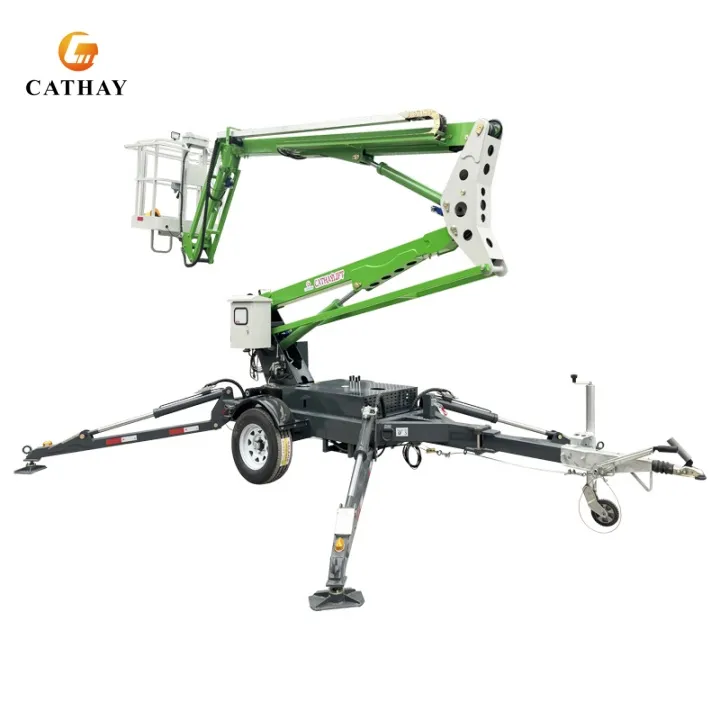

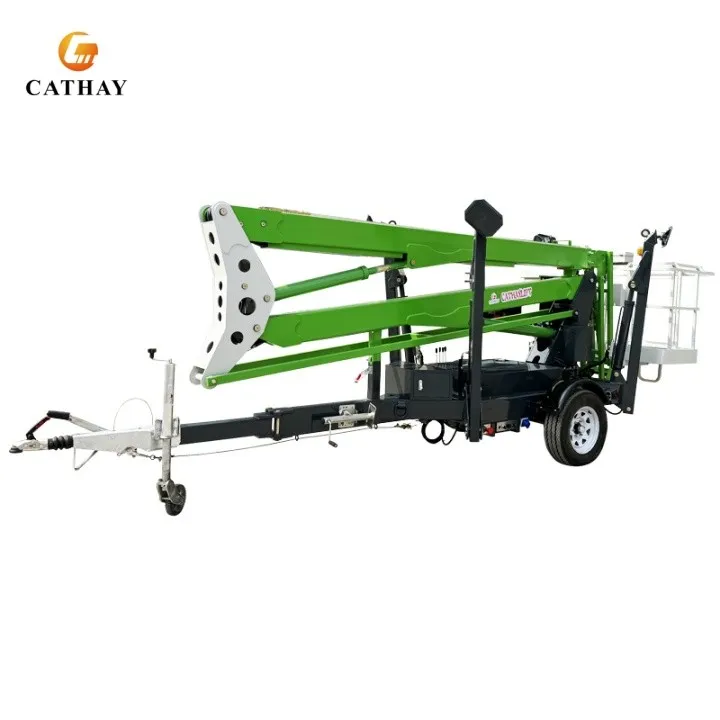

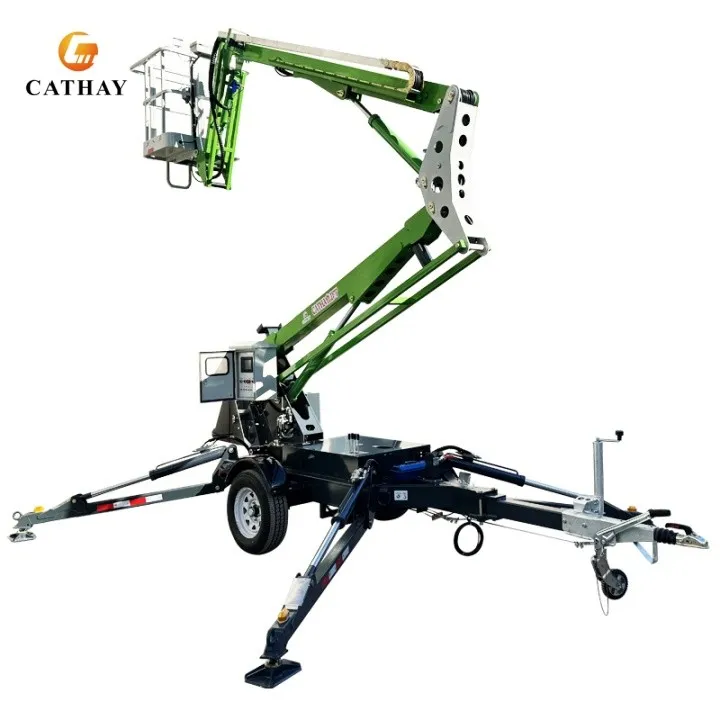

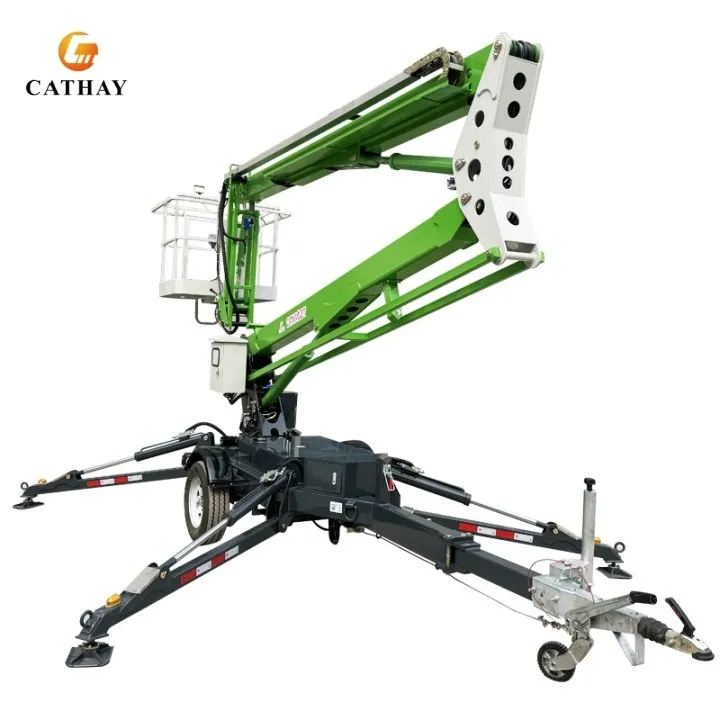

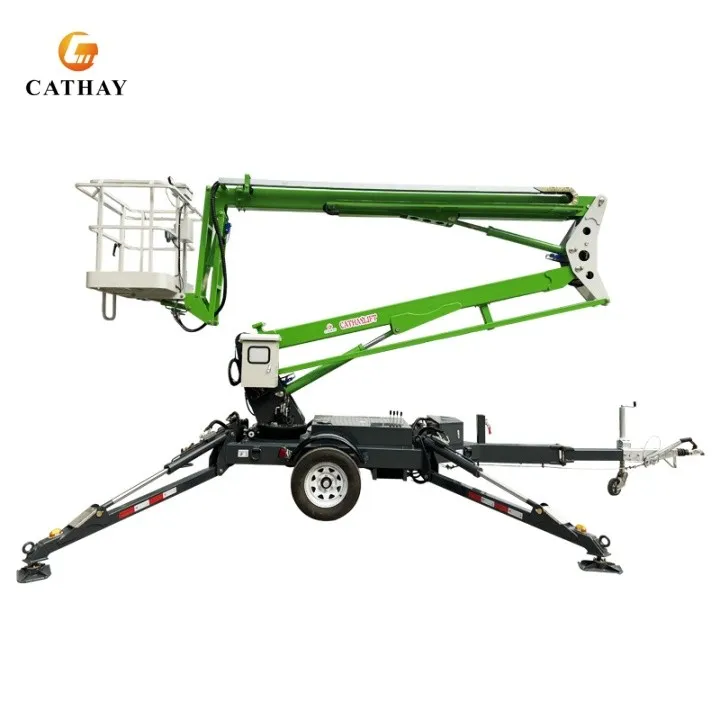

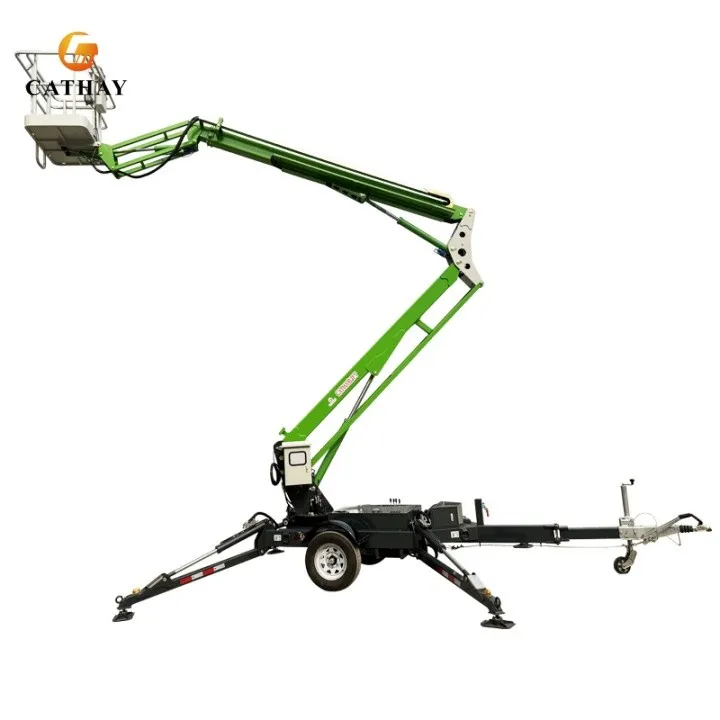

Details Images:
Product advantages:
- Robust high-strength construction ensures excellent durability. High-strength steel is applied to the telescopic boom to control welding distortion, balance weight and structural strength, and reduce boom sagging. The whole unit is well built for heavy-duty and frequent long-time working.
- Great operational flexibility meets multi-scene needs. The upper arm realizes 150° up-and-down working angle. Matched with large hydraulic cylinders and circulating heat dissipation design, the hydraulic system keeps stable temperature, guaranteeing reliable and flexible performance under various tough working environments.
- Featuring an intelligent control system for simple operation and easy upkeep. The upgraded proportional control comes with built-in fault detection. IP65-rated industrial controllers and CAN bus streamline the circuit design, ensuring stable performance and convenient daily repair and maintenance.
- Multiple safety protections make operations more secure: It has a programmed action interlock function, which prevents the equipment from tipping Full-range safety devices guarantee reliable working safety. Action interlock settings limit boom movement to avoid tilting accidents. The dual hydraulic circuit prevents valve jamming, while the emergency power system enables safe resetting when power fails, offering all-round protection for high-altitude work.
- The working platform supports automatic leveling. It detects angles in real time and adjusts proportional valves intelligently, ensuring stable and precise leveling at all times.Anti-misoperation technology prevents repeated engine restart. When working at high positions or large amplitudes, travel and boom speeds will be automatically controlled, making the equipment run more steadily and safely.
application:
